Product CatalogPart Number
BLC9G20XS-160AVY
Manufacturer
Ampleon USA Inc.Description
RF MOSFET LDMOS 30V SOT1275-3
Datasheet
DatasheetPackage
SOT1275-3
In Stock
48,254 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BLC9G20XS-160AVY
BLC9G20XS-160AVY
lmages are for reference only.Payment Methods
Delivery Services
RF Mosfet 30 V 300 mA 1.805GHz ~ 1.99GHz 16.6dB 190W SOT1275-3
Quick Inquiry
BLC9G20XS-160AVY
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Ampleon USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | LDMOS |
| Configuration | - |
| Frequency | 1.805GHz ~ 1.99GHz |
| Gain | 16.6dB |
| Voltage - Test | 30 V |
| Current Rating (Amps) | 1.4µA |
| Noise Figure | - |
| Current - Test | 300 mA |
| Power - Output | 190W |
| Voltage - Rated | 65 V |
| Mounting Type | - |
| Package / Case | SOT1275-3 |
| Supplier Device Package | SOT1275-3 |
| Base Product Number | BLC9 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|

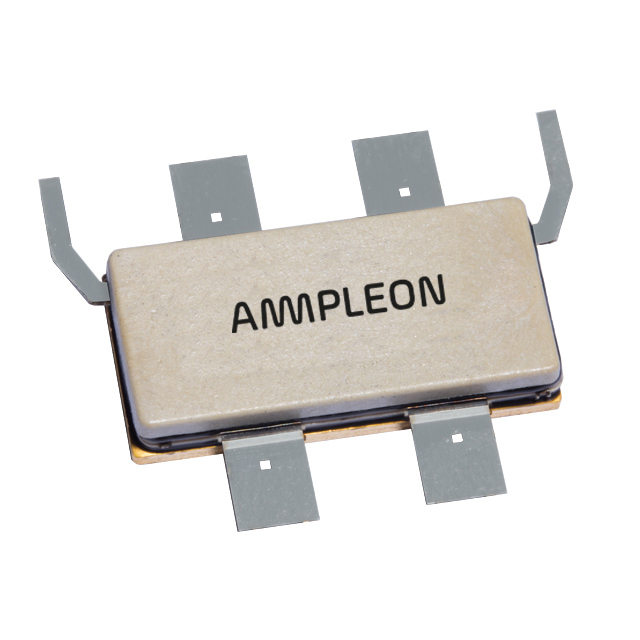

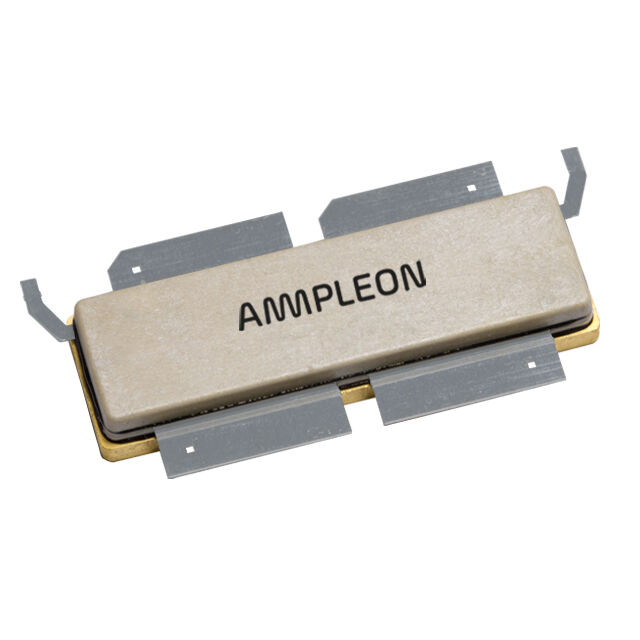

| Part Number | BLC9G20XS-160AVZ | BLC9G20XS-400AVTY | BLC9G20XS-400AVTZ | BLC9G20XS-550AVTY |
| Manufacturer | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF MOSFET LDMOS 30V SOT1275-3 | RF MOSFET LDMOS 32V SOT1258-7 | RF MOSFET LDMOS 32V SOT1258-4 | RF MOSFET LDMOS 28V SOT1258-7 |
| Series | - | - | - | - |
| Packaging | Tray | Tape & Reel (TR) | Tray | Tape & Reel (TR) |
