Product CatalogPart Number
BLP05H9S500PY
Manufacturer
Ampleon USA Inc.Description
RF MOSFET LDMOS 50V OMP780
Datasheet
DatasheetPackage
OMP-780-4F-1
In Stock
71,215 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BLP05H9S500PY
BLP05H9S500PY
lmages are for reference only.Payment Methods
Delivery Services
RF Mosfet 50 V 50 mA 25.2dB 500W OMP-780-4F-1
Quick Inquiry
BLP05H9S500PY
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Ampleon USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | LDMOS |
| Configuration | Dual, Common Source |
| Frequency | - |
| Gain | 25.2dB |
| Voltage - Test | 50 V |
| Current Rating (Amps) | 2.8µA |
| Noise Figure | - |
| Current - Test | 50 mA |
| Power - Output | 500W |
| Voltage - Rated | 108 V |
| Mounting Type | Surface Mount |
| Package / Case | OMP-780-4F-1 |
| Supplier Device Package | OMP-780-4F-1 |
| Base Product Number | BLP05 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

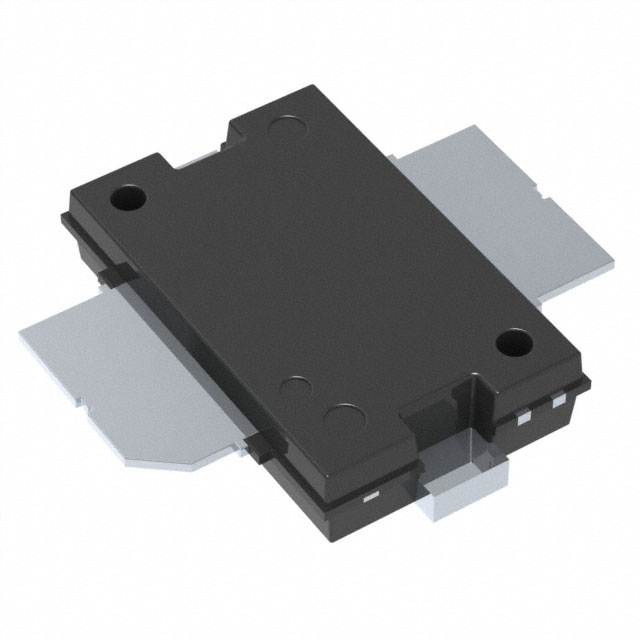

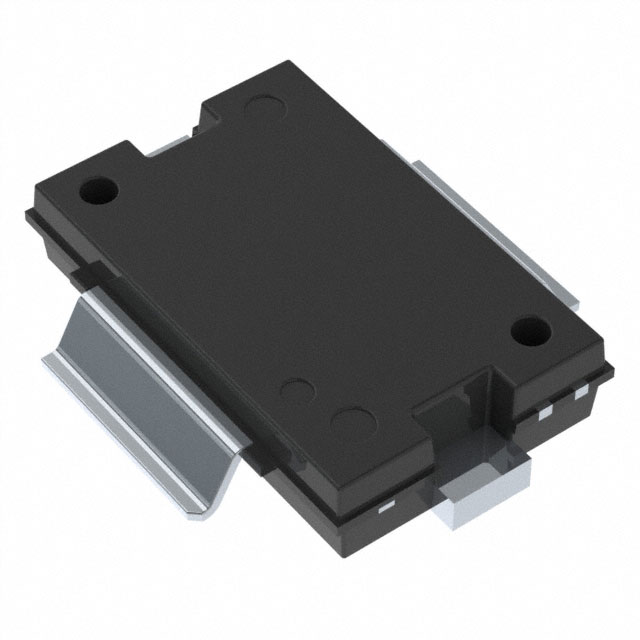

| Part Number | BLP0408H9S30XY | BLP0408H9S30Z | BLP0427M9S20GXY | BLP0427M9S20GZ |
| Manufacturer | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF MOSFET LDMOS 50V TO270 | RF MOSFET LDMOS 50V SOT1482-1 | RF MOSFET LDMOS 28V TO270 | RF MOSFET LDMOS 28V SOT1483-1 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
