Product CatalogPart Number
BLP5LA55SGZ
Manufacturer
Ampleon USA Inc.Description
RF MOSFET LDMOS 15V TO270
Datasheet
DatasheetPackage
TO-270AA
In Stock
86,142 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BLP5LA55SGZ
BLP5LA55SGZ
lmages are for reference only.Payment Methods
Delivery Services
RF Mosfet 15 V 893 mA 520MHz 19.6dB 55W TO-270-2F-1
Quick Inquiry
BLP5LA55SGZ
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Ampleon USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | LDMOS |
| Configuration | N-Channel |
| Frequency | 520MHz |
| Gain | 19.6dB |
| Voltage - Test | 15 V |
| Current Rating (Amps) | 1.4µA |
| Noise Figure | - |
| Current - Test | 893 mA |
| Power - Output | 55W |
| Voltage - Rated | 30 V |
| Mounting Type | Surface Mount |
| Package / Case | TO-270AA |
| Supplier Device Package | TO-270-2F-1 |
| Base Product Number | BLP5 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

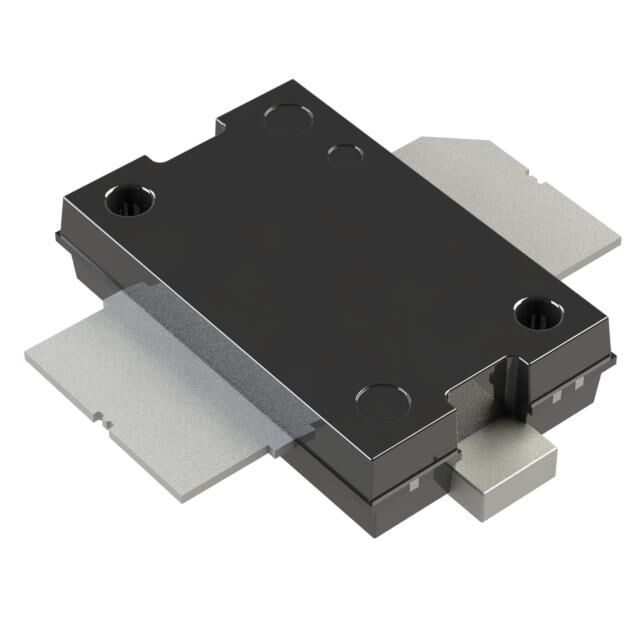

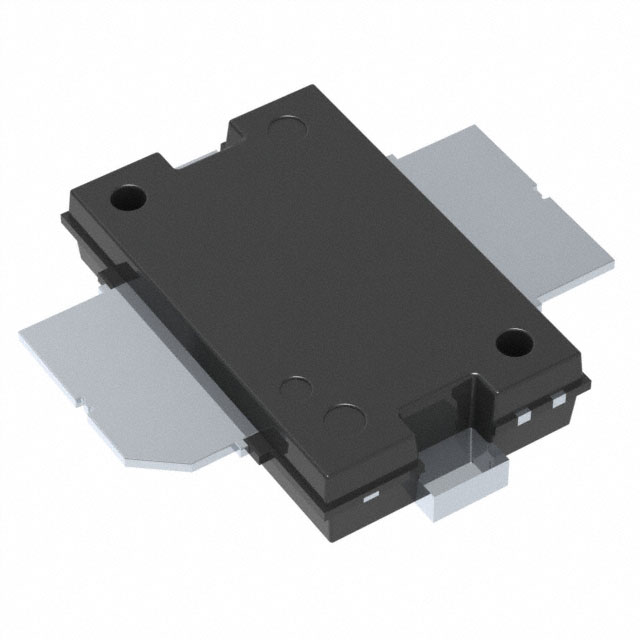

| Part Number | BLP5LA55SGXY | BLP5LA55SXY | BLP5LA55SZ | BLF878,112 |
| Manufacturer | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RF MOSFET LDMOS 15V TO270 | RF MOSFET LDMOS 15V TO270 | RF MOSFET LDMOS 15V SOT1482-1 | RF MOSFET LDMOS 40V CDFM2 |
| Series | - | - | BLP | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tray |
