Product CatalogPart Number
BMMA000606302R2MV1
Manufacturer
Pulse ElectronicsDescription
INDUCTOR POWER
Datasheet
DatasheetPackage
Nonstandard
In Stock
54,375 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BMMA000606302R2MV1
BMMA000606302R2MV1

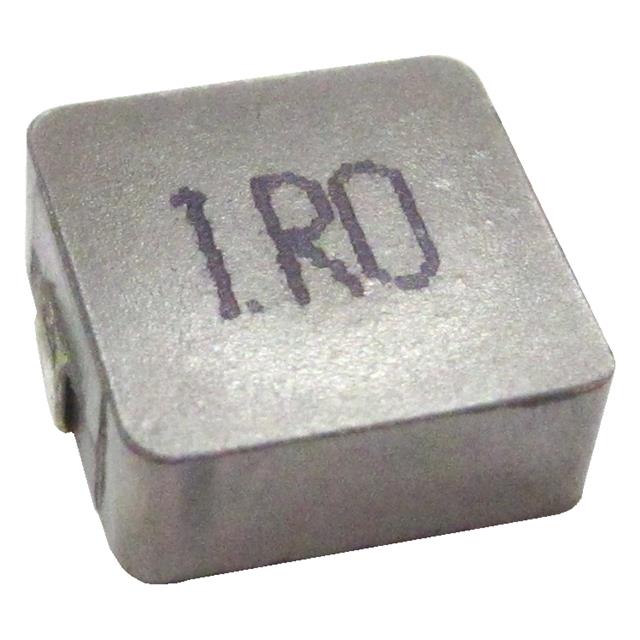

lmages are for reference only.Payment Methods
Delivery Services
2.2 µH Shielded Molded Inductor 8 A 20mOhm Max Nonstandard
Quick Inquiry
BMMA000606302R2MV1
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | BMMA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | 14A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | BMMA000606302R2MX1 | BMMA00060630100MV1 | BMMA00060630100MX2 | BMMA000606301R0MV1 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCTOR POWER | INDUCTOR POWER | INDUCTOR POWER | INDUCTOR POWER |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
