Product CatalogPart Number
BMMA00131335R82MV1
Manufacturer
Pulse ElectronicsDescription
INDUCTOR POWER
Datasheet
DatasheetPackage
Nonstandard
In Stock
29,138 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BMMA00131335R82MV1
BMMA00131335R82MV1

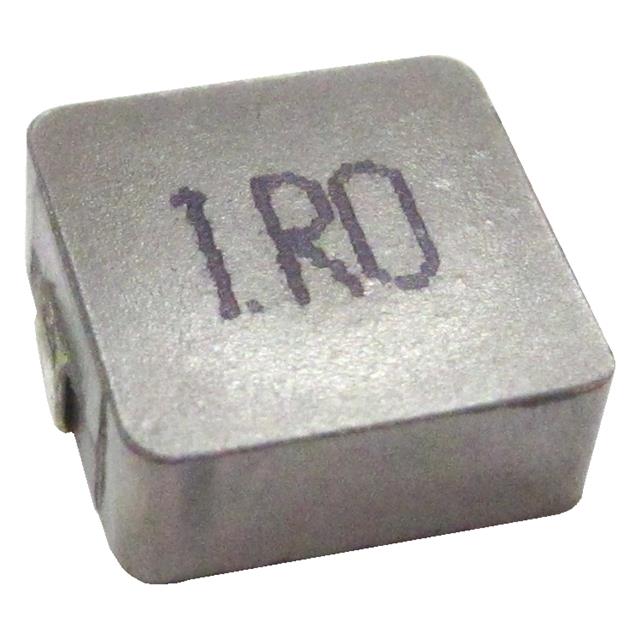

lmages are for reference only.Payment Methods
Delivery Services
820 nH Shielded Molded Inductor 25 A 3mOhm Max Nonstandard
Quick Inquiry
BMMA00131335R82MV1
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | BMMA |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | - |
| Inductance | 820 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 44A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.508" W (13.20mm x 12.90mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
|
| Part Number | BMMA00131335R82MV1 | BMMA00131335100MV1 | BMMA00131335100MV1 | BMMA001313351R0MV1 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCTOR POWER | INDUCTOR POWER | INDUCTOR POWER | INDUCTOR POWER |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
