BMR4912511/858
lmages are for reference only.BMR4912511/858
40-60VIN: 12.2VOUT: 1300W; 1800W
DatasheetQuarter Brick
83,764 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12.2V 110A 40V - 60V Input
BMR4912511/858
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Flex Power Modules |
| Series | BMR491 (1300W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 12.2V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 110A |
| Power (Watts) | 1.342 kW |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate, Heat Sink, I2C Interface, PMBus™, Remote On/Off, Standby Output |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 97% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.30" L x 1.45" W x 0.55" H (58.4mm x 36.8mm x 14.0mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | Enable, Active Low |
| Approval Agency | cURus, UL |
| Standard Number | 60950-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

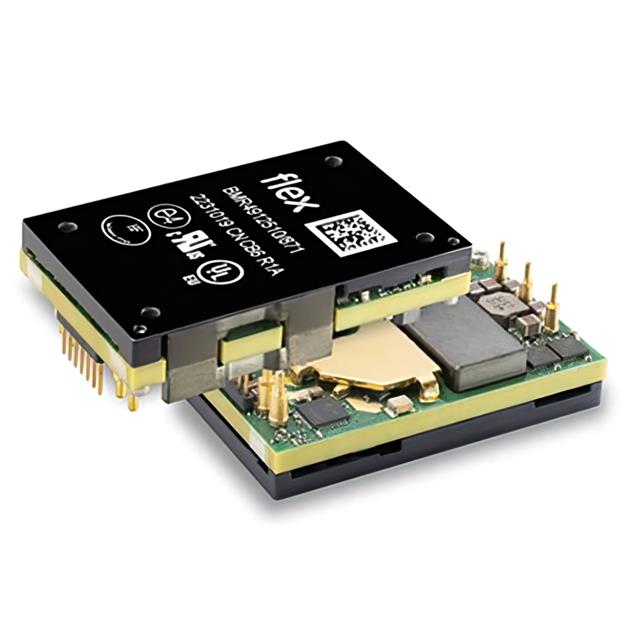

| Part Number | BMR4912510/871 | BMR4500002/020 | BMR4501002/020 | BMR4510002/020 |
| Manufacturer | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 40-60VIN: 24VOUT: 1300W; ISOLATE | DC DC CONVERTER 0.6-5.5V 110W | DC DC CONVERTER 0.6-5.5V 110W | DC DC CONVERTER 0.6-3.6V 144W |
| Series | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| Packaging | Tray | Tray | Tray | Tray |
