Product CatalogPart Number
BP5220A
Manufacturer
Rohm SemiconductorDescription
DC DC CONVERTER 5V 5W
Datasheet
DatasheetPackage
9-SIP Module, 8 Leads
In Stock
70,961 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BP5220A
BP5220A
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 5V 1A 8V - 38V Input
Quick Inquiry
BP5220A
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Rohm Semiconductor |
| Series | BP5220 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 38V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -20°C ~ 70°C |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP Module, 8 Leads |
| Size / Dimension | 1.10" L x 0.47" W x 0.77" H (28.0mm x 12.0mm x 19.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BP5220 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

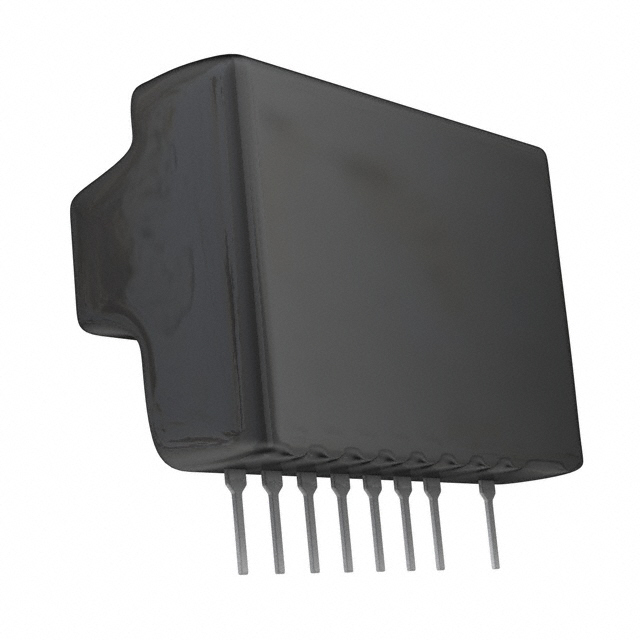

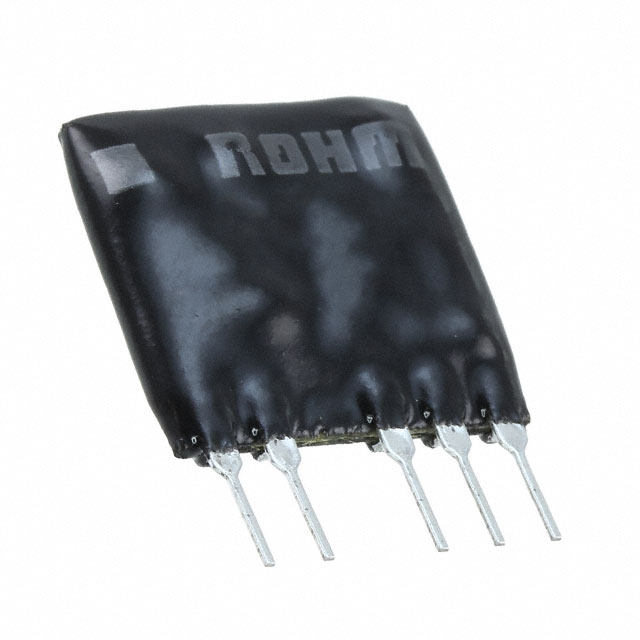

| Part Number | BP5221A | BP5222A | BP5223 | BP5224-33 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 2W | DC DC CONVERTER 12V 6W | DC DC CONVERTER 5V 0.15A | DC DC CONVERTER 3.3V |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Bulk | Tray | Tray | Bulk |
