BPC-817
lmages are for reference only.BPC-817
PHOTO COUPLER BIN B
Datasheet4-DIP (0.300", 7.62mm)
87,463 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
BPC-817
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | American Bright Optoelectronics Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 35V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |

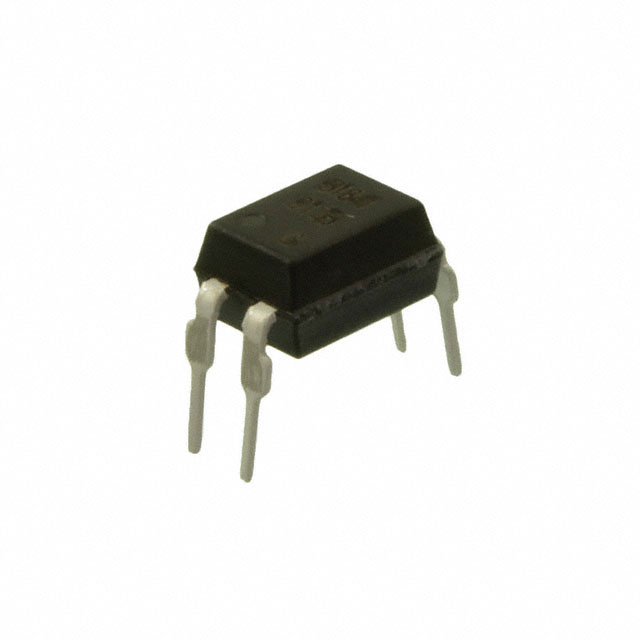

| Product Attribute | .jpg "BPC-817 ( B BIN )") |

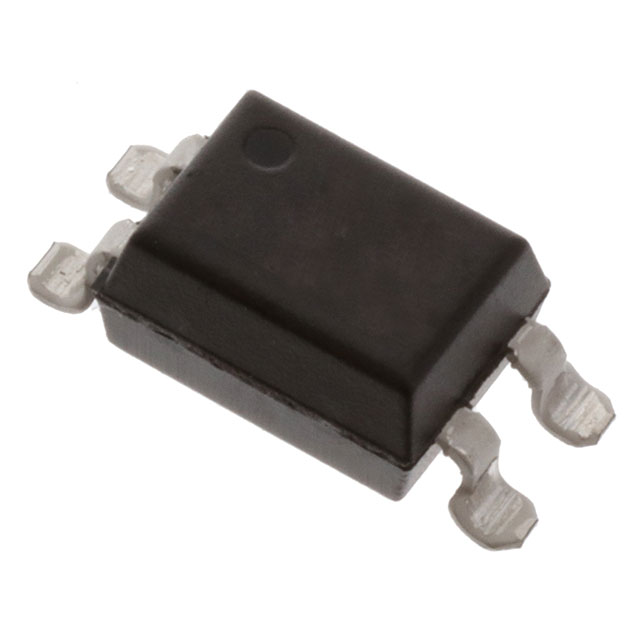

.jpg "BPC-817S ( C BIN )") |
 |
 |

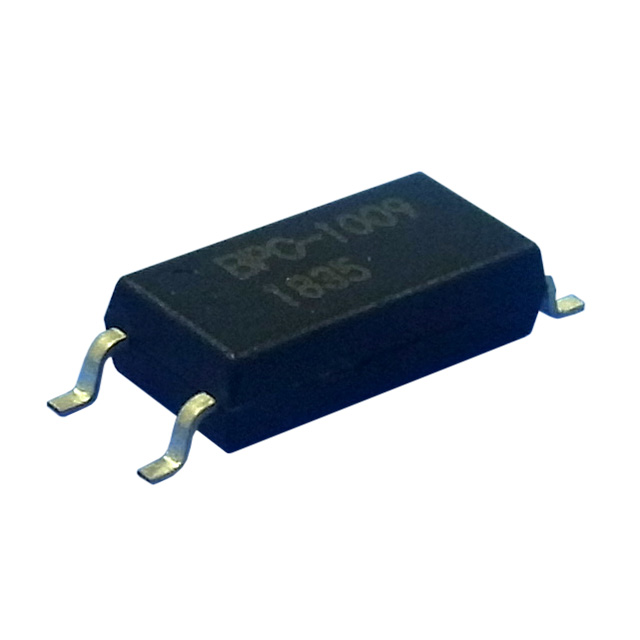

| Part Number | BPC-817 ( B BIN ) | BPC-817S ( C BIN ) | BPC-1008 | BPC-1009 |
| Manufacturer | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR PHOTO 4DIP | SENSOR PHOTO 4SMD | 4 PINS TRANSISTOR OUTPUT OPTOCOU | 4 PINS TRANSISTOR OUTPUT OPTOCOU |
| Series | - | - | BPC-10XX | BPC-10XX |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
