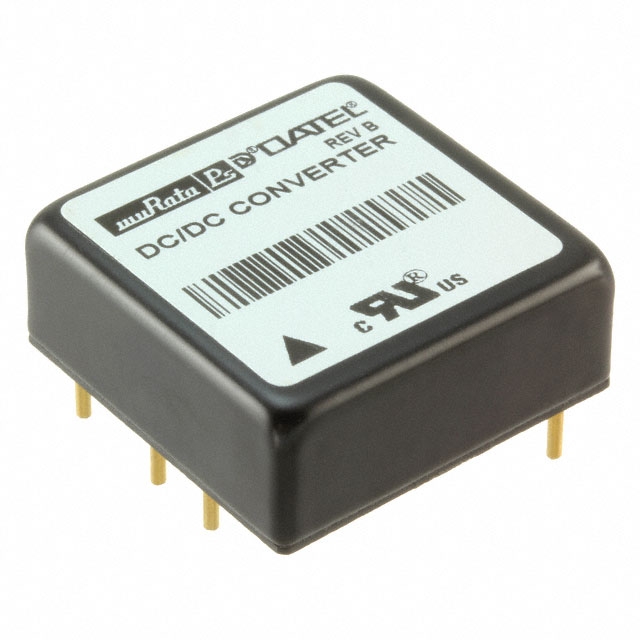

BPM15-150-Q12-C
lmages are for reference only.BPM15-150-Q12-C
DC DC CONVERTER +/-15V 15W
Datasheet6-DIP Module
10,207 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 36V Input
BPM15-150-Q12-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | BPM15 (15W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA, 500mA |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | OTP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 84.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BPM15 |
| Voltage - Isolation | 1.6 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | BPM15-150-Q12N-C | BPM15-150-Q12P-C | BPM15-150-Q48-C | BPM15-150-Q48N-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-15V 15W | DC DC CONVERTER +/-15V 15W | DC DC CONVERTER +/-15V 15W | DC DC CONVERTER +/-15V 15W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
