BQ24751ARHDR-BE
lmages are for reference only.Payment Methods
Delivery Services
Charger IC Multi-Chemistry 28-VQFN-EP (5x5)
BQ24751ARHDR-BE
| Category | Integrated Circuits (ICs) - Power Management PMIC - Battery Chargers |
| Manufacturer | Benchmarq |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 2 ~ 4 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Current, Over Voltage |
| Charge Current - Max | 10A |
| Battery Pack Voltage | 18.04V (Max) |
| Voltage - Supply (Max) | 24V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-VQFN-EP (5x5) |
| Base Product Number | BQ24751 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

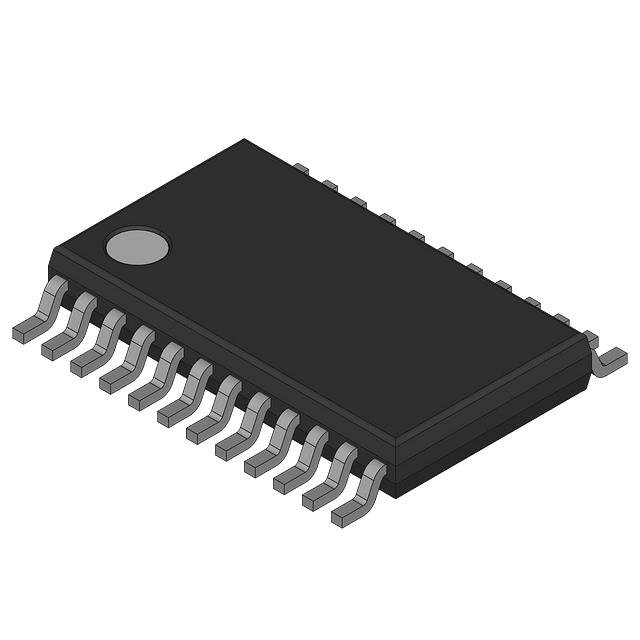

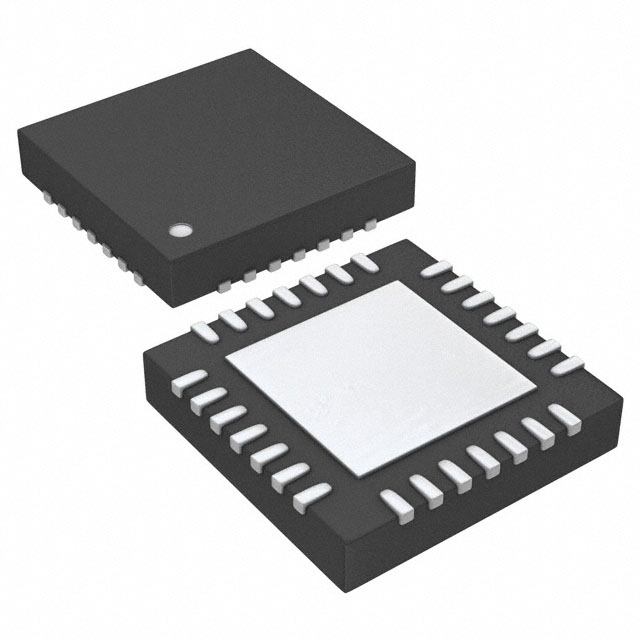

| Part Number | BQ24751ARHDR | BQ24751ARHDT | BQ24700PW | BQ24701PW |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC BAT CHG MULTCHEM 2-4CL 28VQFN | IC BAT CHG MULTCHEM 2-4CL 28VQFN | IC BATT CHG MULTI-CHEM 24TSSOP | IC BATT CHG MULTI-CHEM 24TSSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube | Tube |
