BSC072N03LDGATMA1

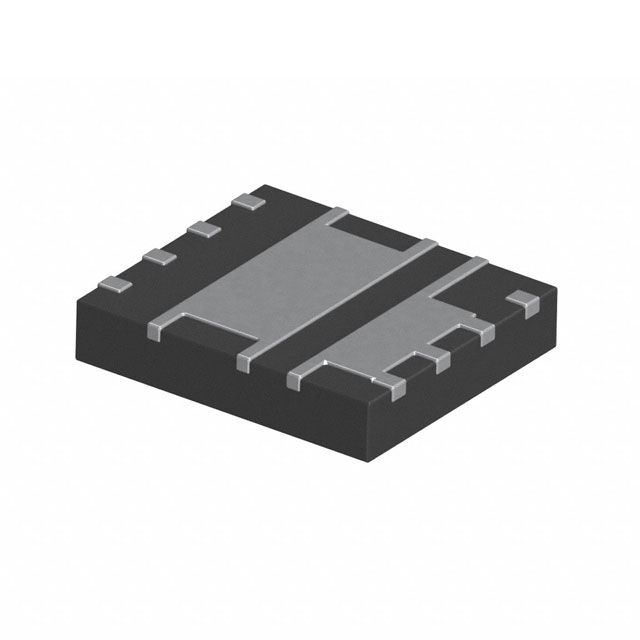

lmages are for reference only.BSC072N03LDGATMA1
MOSFET 2N-CH 30V 11.5A 8TDSON
Datasheet8-PowerVDFN
85,011 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 11.5A 57W Surface Mount PG-TDSON-8-4
BSC072N03LDGATMA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 11.5A |
| Rds On (Max) @ Id, Vgs | 7.2mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 41nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 3500pF @ 15V |
| Power - Max | 57W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PG-TDSON-8-4 |
| Base Product Number | BSC072N03 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | BSC072N04LDATMA1 | BSC076N04NDATMA1 | BSC0910NDIATMA1 | BSC0911NDATMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 40V 20A 8TDSON | MOSFET 2N-CH 40V 20A 8TDSON | MOSFET 2N-CH 25V 11A/31A TISON8 | MOSFET 2N-CH 25V 18A/30A TISON8 |
| Series | OptiMOS™ T2 | OptiMOS™ T2 | OptiMOS™ | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
