BSP75NNT

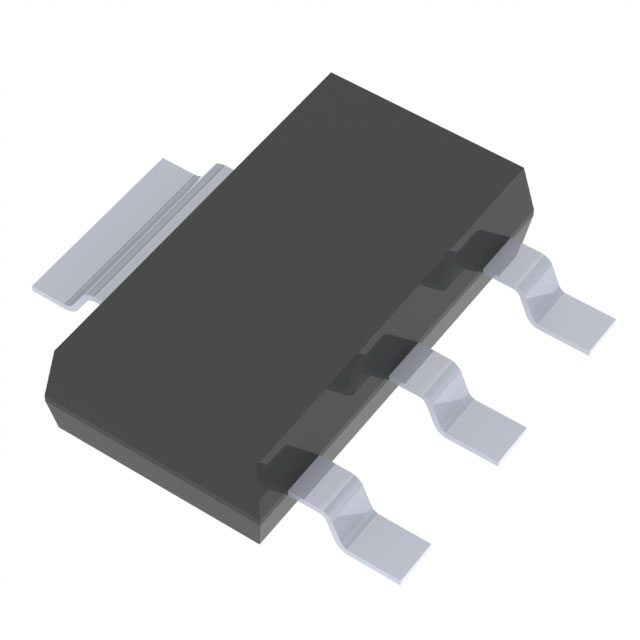

lmages are for reference only.BSP75NNT
IC PWR DRVR N-CHAN 1:1 SOT223-4
DatasheetTO-261-4, TO-261AA
86,568 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 700mA PG-SOT223-4
BSP75NNT
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 60V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 700mA |
| Rds On (Typ) | 430mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | BSP75 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BSP752RXUMA2 | BSP752TXUMA1 | BSP75G-13 | BSP75GQ-13 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC PWR SWITCH N-CHAN 1:1 PDSO-8 | IC PWR SWITCH N-CHAN 1:1 PDSO-8 | LOW SIDE INTELLIFET SOT223 T&R 4 | LOW SIDE INTELLIFET SOT223 T&R 4 |
| Series | Infineon Technologies | Infineon Technologies | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
