Product CatalogPart Number
BT0507BH3I507BN40
Manufacturer
XTALTQDescription
TCXO 7050-10PADS 40MHZ CMOS 3.
Datasheet
DatasheetPackage
10-SMD, No Lead
In Stock
53,229 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BT0507BH3I507BN40
BT0507BH3I507BN40

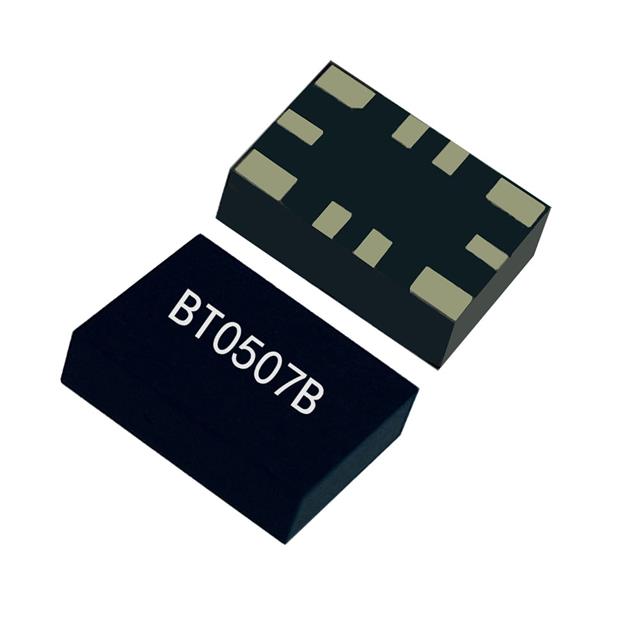

lmages are for reference only.Payment Methods
Delivery Services
40 MHz TCXO HCMOS Oscillator 3.3V 10-SMD, No Lead
Quick Inquiry
BT0507BH3I507BN40
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | XTALTQ |
| Series | BT0507B |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 40 MHz |
| Function | - |
| Output | HCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±500ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 15mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension | 0.280" L x 0.197" W (7.10mm x 5.00mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
|
| Part Number | BT0507BH3I507BN50 | BT0507BH3I507CN25 | BT0507BH3I507CN30.72 | BT0507BH3I507DN20 |
| Manufacturer | XTALTQ | XTALTQ | XTALTQ | XTALTQ |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TCXO 7050-10PADS 50MHZ CMOS 3. | TCXO 7050-10PADS 25MHZ CMOS 3. | TCXO 7050-10PADS 30.72MHZ CMOS | TCXO 7050-10PADS 20MHZ CMOS 3. |
| Series | XTALTQ | XTALTQ | XTALTQ | XTALTQ |
| Packaging | Strip | Strip | Strip | Strip |
