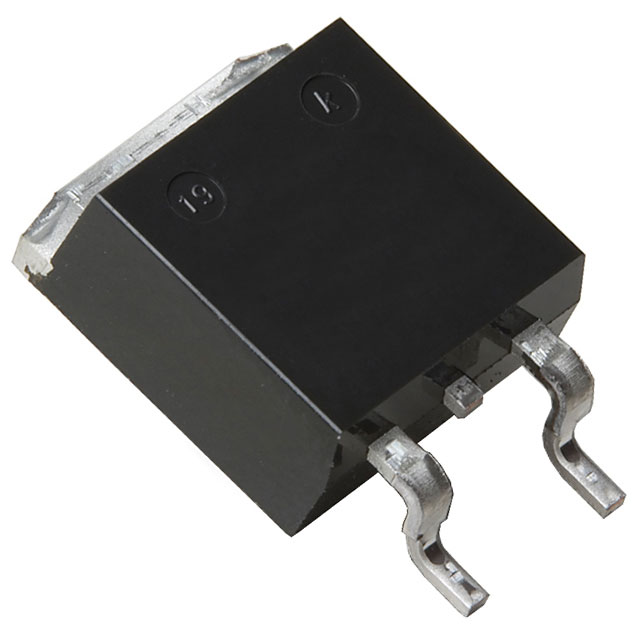

BT139B-800,118
lmages are for reference only.BT139B-800,118
TRIAC 800V 16A D2PAK
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
16,761 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
TRIAC Standard 800 V 16 A Surface Mount D2PAK
BT139B-800,118
| Category | Discrete Semiconductor Products - Thyristors - TRIACs |
| Manufacturer | WeEn Semiconductors |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Triac Type | Standard |
| Voltage - Off State | 800 V |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 155A, 170A |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - Hold (Ih) (Max) | 45 mA |
| Configuration | Single |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Base Product Number | BT139 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BT139B-800E,118 | BT139B-800F,118 | BT139B-800G,118 | BT1306-400D,412 |
| Manufacturer | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | NXP USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | TRIAC SENS GATE 800V 16A D2PAK | TRIAC 800V 16A D2PAK | TRIAC 800V 16A D2PAK | TRIAC SENS GATE 400V 0.6A TO92-3 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
