BT145X-800RQ
lmages are for reference only.BT145X-800RQ
SCR 800V 25A TO220F
DatasheetTO-220-3 Full Pack, Isolated Tab
11,729 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SCR 800 V 25 A Sensitive Gate Through Hole TO-220F
BT145X-800RQ
| Category | Discrete Semiconductor Products - Thyristors - SCRs |
| Manufacturer | WeEn Semiconductors |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Voltage - Off State | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - On State (It (AV)) (Max) | 16 A |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A, 330A |
| SCR Type | Sensitive Gate |
| Operating Temperature | 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220F |
| Voltage - On State (Vtm) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 25 A |
| Current - Off State (Max) | 1 mA |
| Base Product Number | BT145 |
| Product Attribute |  |
 |
 |
 |

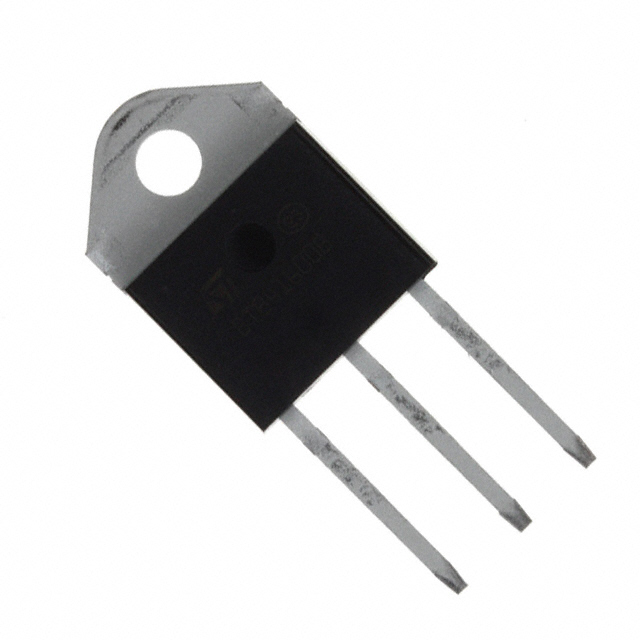

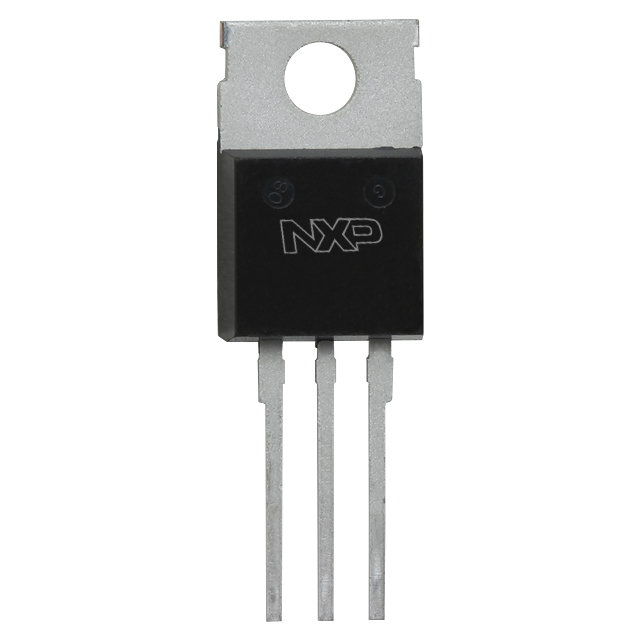

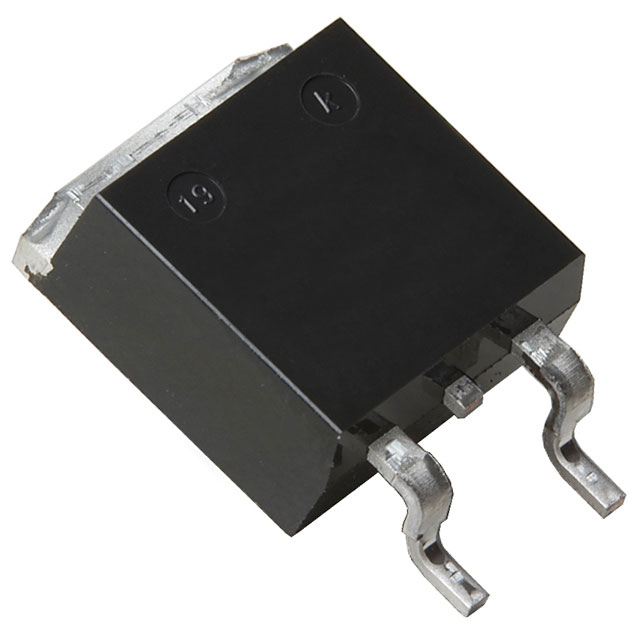

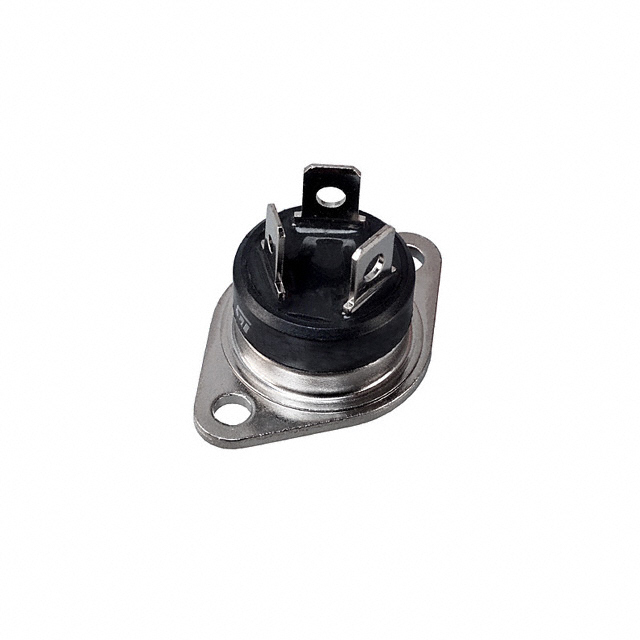

| Part Number | BTW67-600 | BTW68-600RG | BT152B-800R,118 | BT151-650L,127 |
| Manufacturer | STMicroelectronics | STMicroelectronics | WeEn Semiconductors | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | SCR 600V 50A RD91 | SCR 600V 30A TOP3 | SCR 800V 20A D2PAK | NOW WEEN - BT151-650L - SILICON |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk |
