Product CatalogPart Number
BTI48-03S400D
Manufacturer
Bellnix Co., Ltd.Description
DC DC CONVERTER 3.3V 13W
Datasheet
DatasheetPackage
6-DIP Module
In Stock
96,753 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BTI48-03S400D
BTI48-03S400D
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 4A 18V - 76V Input
Quick Inquiry
BTI48-03S400D
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bellnix Co., Ltd. |
| Series | BTI (15W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 76V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 13 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 9.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | cURus |
| Standard Number | - |
| Base Product Number | BTI48 |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

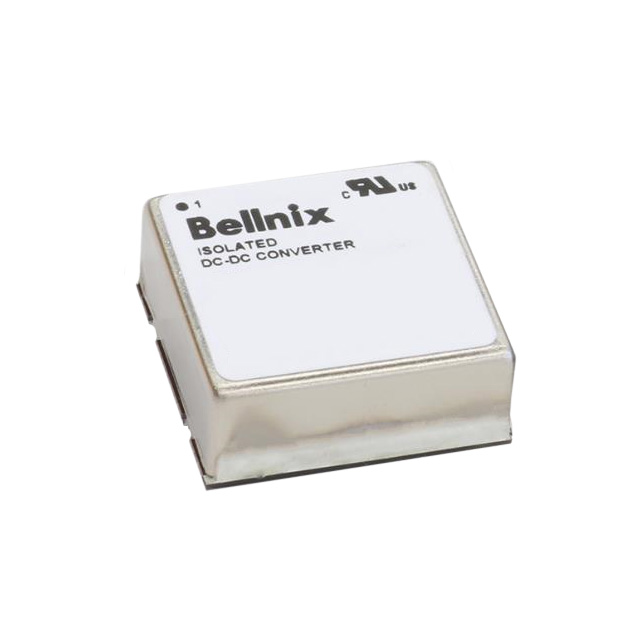

| Part Number | BTI48-05S300D | BTI24-03S400D | BTI24-05S300D | BTI24-12S130D |
| Manufacturer | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 15W | DC DC CONVERTER 3.3V 13W | DC DC CONVERTER 5V 15W | DC DC CONVERTER 12V 16W |
| Series | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
