Product CatalogPart Number
BTJ24-03S700D
Manufacturer
Bellnix Co., Ltd.Description
DC DC CONVERTER 3.3V 23W
Datasheet
DatasheetPackage
6-DIP Module
In Stock
79,184 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BTJ24-03S700D
BTJ24-03S700D

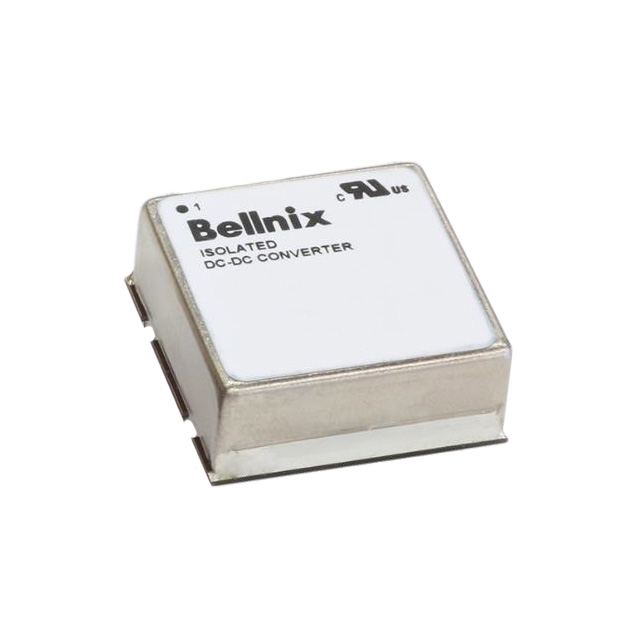

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 7A 9V - 36V Input
Quick Inquiry
BTJ24-03S700D
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bellnix Co., Ltd. |
| Series | BTJ (30W) |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7A |
| Power (Watts) | 23 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BTJ24 |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | BTJ24-05S600D | BTJ24-12S250D | BTJ24-12W125D | BTJ24-15S200D |
| Manufacturer | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 5V 30W | DC DC CONVERTER 12V 30W | DC DC CONVERTER +/-12V 30W | DC DC CONVERTER 15V 30W |
| Series | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
