BTS612N1 E3128A
lmages are for reference only.BTS612N1 E3128A
IC PWR SWITCH N-CHAN 1:1 TO263-7
DatasheetTO-263-7, D2PAK (6 Leads + Tab)
64,914 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 1.8A PG-TO263-7-2
BTS612N1 E3128A
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5V ~ 34V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.8A |
| Rds On (Typ) | 160mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart, Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO263-7-2 |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab) |
| Base Product Number | BTS612N1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

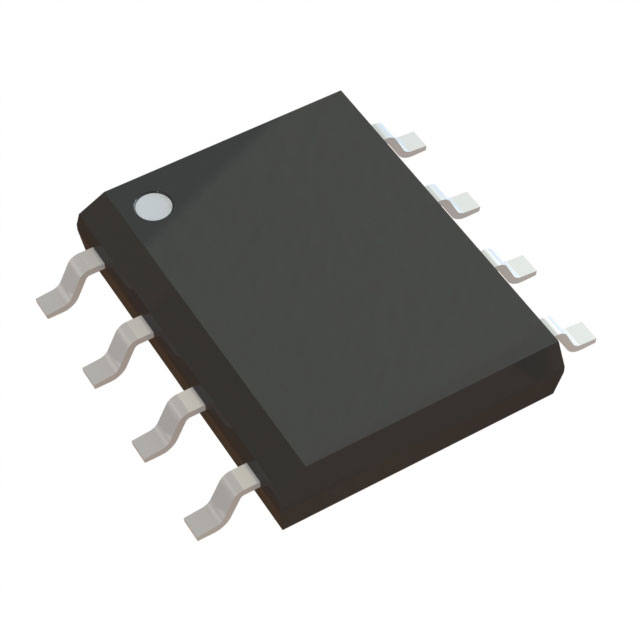

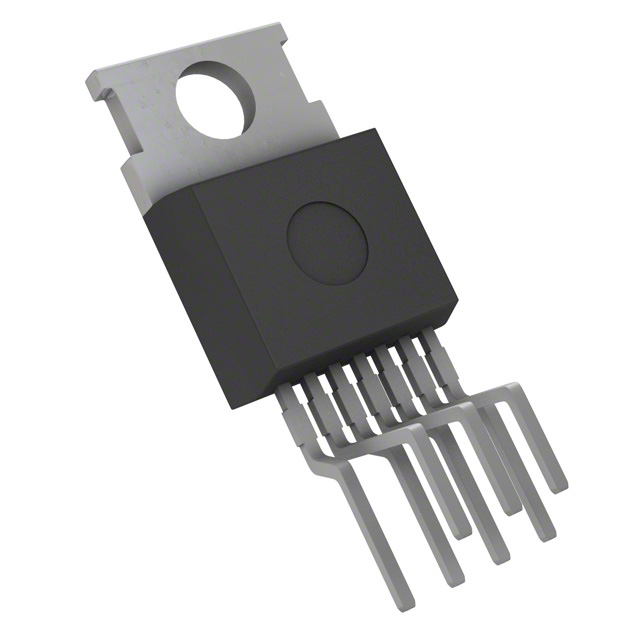

| Part Number | BTS61101SJAXUMA1 | BTS61101SJAXUMA2 | BTS611L1 | BTS611L1 E3128A |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | IC PWR SWITCH N-CHAN 1:1 DSO-8 | IC PWR SWITCH N-CHAN 1:1 DSO-8 | IC PWR SWITCH N-CHAN 1:1 TO220-7 | IC PWR SWITCH N-CHAN 1:1 TO263-7 |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) |
