BUK7E2R3-40C,127

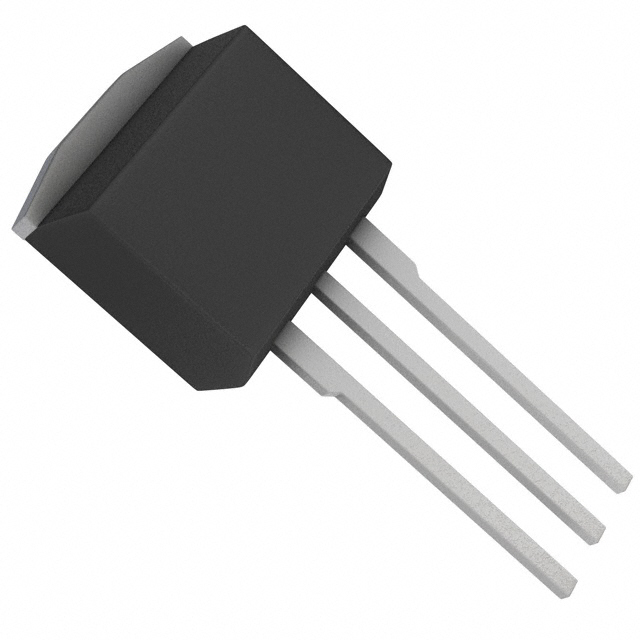

lmages are for reference only.BUK7E2R3-40C,127
MOSFET N-CH 40V 100A I2PAK
DatasheetTO-262-3 Long Leads, I2PAK, TO-262AA
21,073 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 100A (Tc) 333W (Tc) Through Hole I2PAK
BUK7E2R3-40C,127
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | TrenchMOS™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.3mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 11323 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 333W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I2PAK |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 175 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
 |
|
 |
| Part Number | BUK7E2R3-40C,127 | BUK7E2R3-40E,127 | BUK7E2R3-40E,127 | BUK7E2R6-60E,127 |
| Manufacturer | NXP USA Inc. | NXP Semiconductors | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 40V 100A I2PAK | NEXPERIA BUK7E2R3-40E - 120A, 40 | MOSFET N-CH 40V 120A I2PAK | MOSFET N-CH 60V 120A I2PAK |
| Series | * | TrenchMOS™ | TrenchMOS™ | TrenchMOS™ |
| Packaging | Tube | Bulk | Tube | Tube |
