BUK7M15-60EX

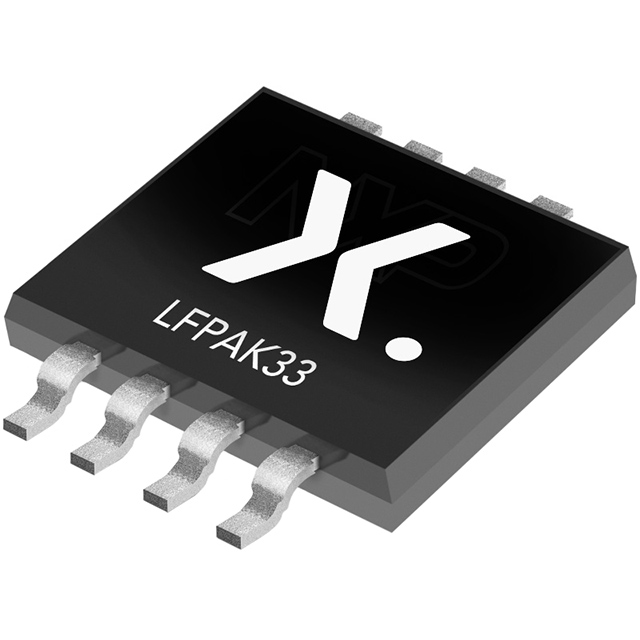

lmages are for reference only.BUK7M15-60EX
MOSFET N-CH 60V 42.9A LFPAK33
DatasheetSOT-1210, 8-LFPAK33 (5-Lead)
61,095 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 42.9A (Tc) 62W (Tc) Surface Mount LFPAK33
BUK7M15-60EX
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 42.9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1262 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 62W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK33 |
| Package / Case | SOT-1210, 8-LFPAK33 (5-Lead) |
| Base Product Number | BUK7M15 |
| Gate Charge (Qg) (Max) @ Vgs | 19.4 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
 |
| Part Number | BUK7M10-40EX | BUK7M11-40HX | BUK7M12-40EX | BUK7M12-60EX |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 40V 56A LFPAK33 | MOSFET N-CH 40V 35A LFPAK33 | MOSFET N-CH 40V 48A LFPAK33 | MOSFET N-CH 60V 53A LFPAK33 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
