Product CatalogPart Number
BWNL00292522R47K00
Manufacturer
Pulse ElectronicsDescription
INDUCTOR RF
Datasheet
DatasheetPackage
Nonstandard
In Stock
38,143 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BWNL00292522R47K00
BWNL00292522R47K00

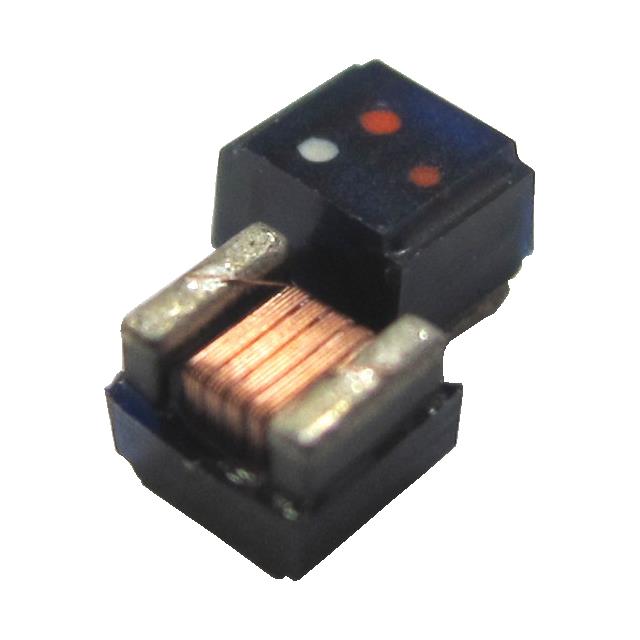

lmages are for reference only.Payment Methods
Delivery Services
470 nH Unshielded Drum Core, Wirewound Inductor 800 mA 680mOhm Max Nonstandard
Quick Inquiry
BWNL00292522R47K00
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | BWNL |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 680mOhm Max |
| Q @ Freq | 30 @ 25.2MHz |
| Frequency - Self Resonant | 350MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.115" L x 0.098" W (2.92mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | BWNL00292522R47J00 | BWNL00292522100J00 | BWNL00292522100K00 | BWNL00292522101J00 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCTOR RF | INDUCTOR RF | INDUCTOR RF | INDUCTOR RF |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
