BWR-12/335-D5A-C
lmages are for reference only.BWR-12/335-D5A-C
DC DC CONVERTER +/-12V 8W
Datasheet5-DIP Module
21,500 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 335mA, 335mA 4.7V - 7.25V Input
BWR-12/335-D5A-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | BWR (10W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.7V |
| Voltage - Input (Max) | 7.25V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 335mA, 335mA |
| Power (Watts) | 8 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 78% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.38" H (50.8mm x 25.4mm x 9.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BWR-12 |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
 |
 |

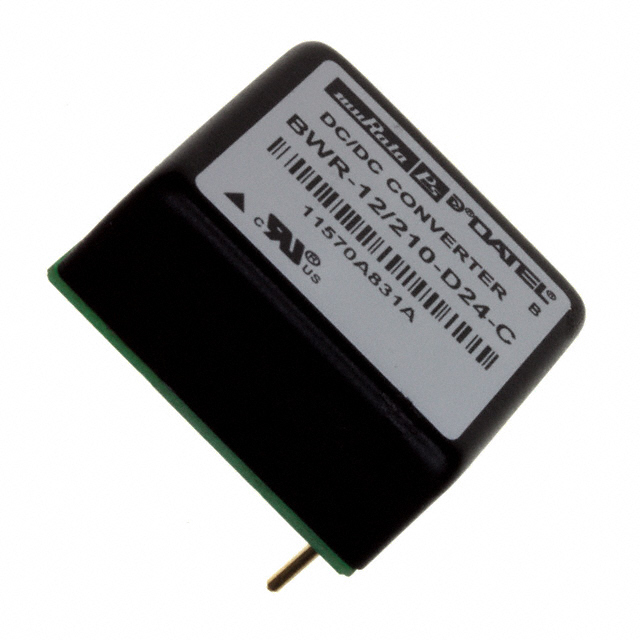

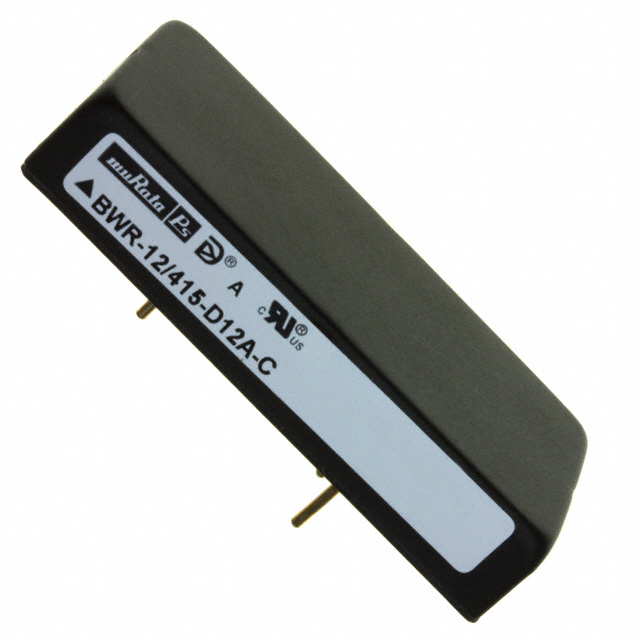

| Part Number | BWR-12/125-D12-C | BWR-12/125-D48-C | BWR-12/210-D24-C | BWR-12/415-D12A-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-12V 3W | DC DC CONVERTER +/-12V 3W | DC DC CONVERTER +/-12V 5W | DC DC CONVERTER +/-12V 10W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
