BXB75-48D05-3V3FH
lmages are for reference only.BXB75-48D05-3V3FH
DC DC CONVERTER 5V 3.3V 75W
Datasheet10-DIP Module
27,610 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V 3.3V 15A, 15A 36V - 75V Input
BXB75-48D05-3V3FH
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | BXB75 (75W) |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 15A, 15A |
| Power (Watts) | 75 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP Module |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
|
 |
|

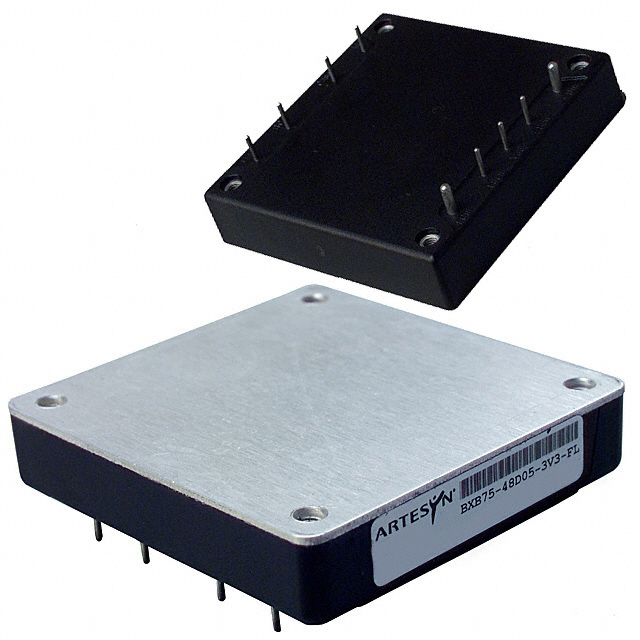

| Part Number | BXB75-48D05-3V3FL | BXB75-48D05-3V3FL | BXB75-48S12FHT | BXB75-48S12FHTJ |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | DC DC CONVERTER 5V 3.3V 75W | DC DC CONVERTER 5V 3.3V 75W | DC DC CONVERTER 12V 75W | DC DC CONVERTER 12V 75W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Bulk | Bulk | Bulk | Bulk |
