BY25D20ASOIG(R)
lmages are for reference only.BY25D20ASOIG(R)
IC FLASH 2MBIT SPI/DUAL 8TSSOP
Datasheet8-TSSOP (0.173", 4.40mm Width)
20,308 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
FLASH - NOR Memory IC 2Mbit SPI - Dual I/O 108 MHz 7 ns 8-TSSOP
BY25D20ASOIG(R)
| Category | Integrated Circuits (ICs) - Memory - Memory |
| Manufacturer | BYTe Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 2Mbit |
| Memory Organization | 256K x 8 |
| Memory Interface | SPI - Dual I/O |
| Clock Frequency | 108 MHz |
| Write Cycle Time - Word, Page | 2.4ms |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | BY25D20 |
| Access Time | 7 ns |
| Grade | - |
| Qualification | - |
| Product Attribute | .jpg "BY25D20ASOIG(T)") |
.jpg "BY25D20ASMIG(R)") |
.jpg "BY25D20ASTIG(R)") |
.jpg "BY25D20ASTIG(T)") |
| Part Number | BY25D20ASOIG(T) | BY25D20ASMIG(R) | BY25D20ASTIG(R) | BY25D20ASTIG(T) |
| Manufacturer | BYTe Semiconductor | BYTe Semiconductor | BYTe Semiconductor | BYTe Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC FLASH 2MBIT SPI/DUAL 8TSSOP | IC FLASH 2MBIT SPI/DUAL 8USON | IC FLASH 2MBIT SPI/DUAL 8SOP | IC FLASH 2MBIT SPI/DUAL 8SOP |
| Series | BYTe Semiconductor | BYTe Semiconductor | BYTe Semiconductor | BYTe Semiconductor |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
Recommended Products
.jpg "BY25D05ASMIG(R)")
.jpg "BY25D05ASOIG(R)")
.jpg "BY25D05ASOIG(T)")
.jpg "BY25D05ASTIG(R)")

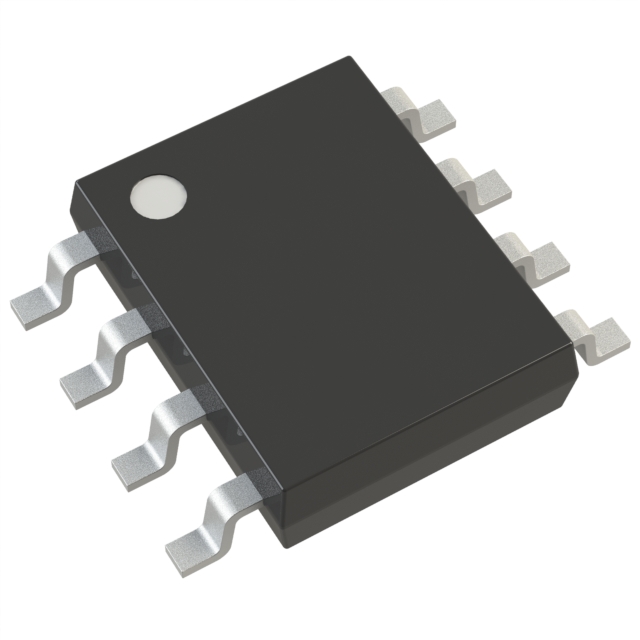

.jpg "BY25D05ASTIG(T)")
.jpg "BY25D10ASTIG(R)")
.jpg "BY25D10ASTIG(T)")

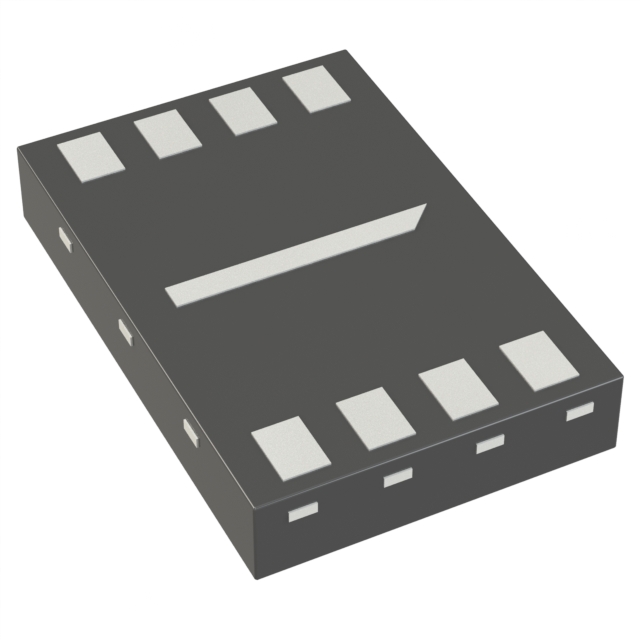

.jpg "BY25D16ASMIG(R)")
