Product CatalogPart Number
BYW29-200H
Manufacturer
onsemiDescription
DIODE GEN PURP 200V 8A TO220-2
Datasheet
DatasheetPackage
TO-220-2
In Stock
93,869 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BYW29-200H
BYW29-200H
lmages are for reference only.Payment Methods
Delivery Services
Diode 200 V 8A Through Hole TO-220-2
Quick Inquiry
BYW29-200H
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | onsemi |
| Series | SWITCHMODE™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220-2 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | BYW29 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | BYW29-200 | BYW29-200-E3/45 | BYW29-200G | BYW29-200HE3/45 |
| Manufacturer | STMicroelectronics | Vishay General Semiconductor - Diodes Division | onsemi | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 200V 8A TO220AC | DIODE GEN PURP 200V 8A TO220AC | DIODE GEN PURP 200V 8A TO220-2 | DIODE GEN PURP 200V 8A TO220AC |
| Series | - | - | SWITCHMODE™ | - |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
BYW29-100-E3/45
Vishay General Semiconductor - Diodes Division
BYW29-100HE3/45
Vishay General Semiconductor - Diodes Division
BYW29-150-E3/45
Vishay General Semiconductor - Diodes Division
BYW29-150HE3/45
Vishay General Semiconductor - Diodes Division
BYW29-200
STMicroelectronics
BYW29-200-E3/45
Vishay General Semiconductor - Diodes Division

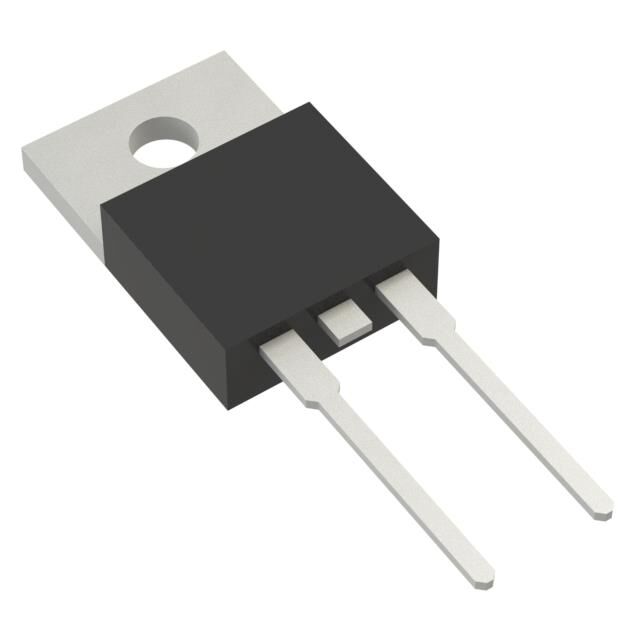

BYW29-200G
onsemi

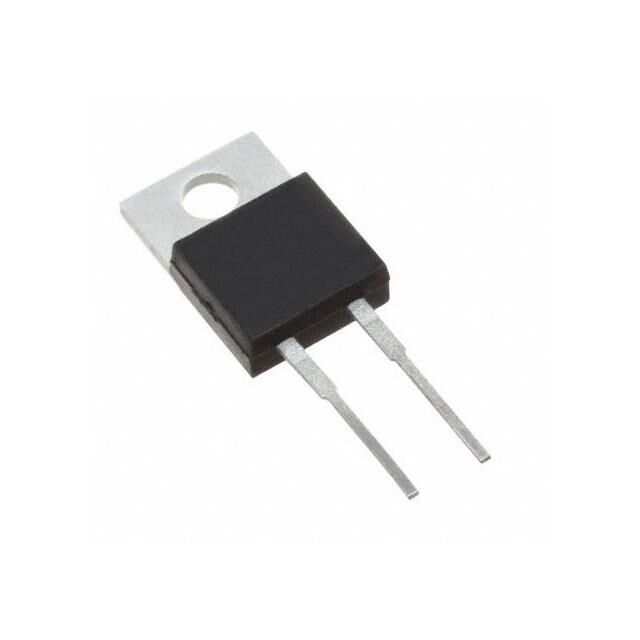

BYW29-200HE3/45
Vishay General Semiconductor - Diodes Division
BYW29-50-E3/45
Vishay General Semiconductor - Diodes Division
BYW29-50HE3/45
Vishay General Semiconductor - Diodes Division
BYW29E-100,127
WeEn Semiconductors
BYW29E-100,127
NXP USA Inc.

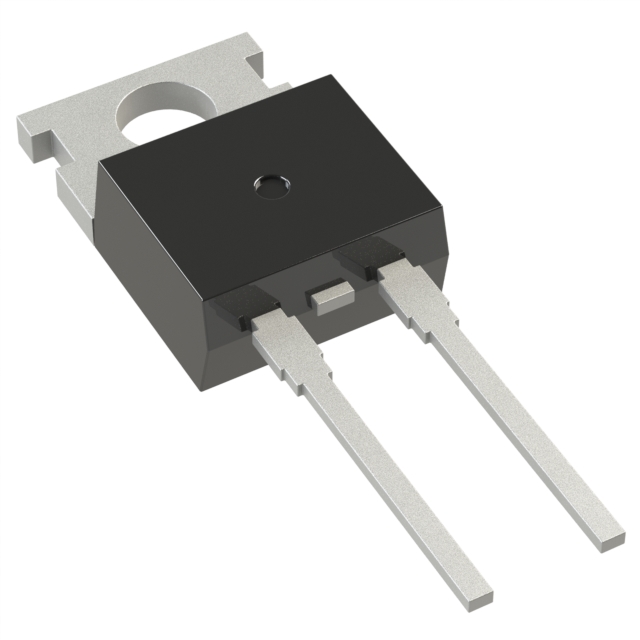

BYW29E-150,127
WeEn Semiconductors
BYW29E-200,127
WeEn Semiconductors
BYW29ED-200,118
WeEn Semiconductors

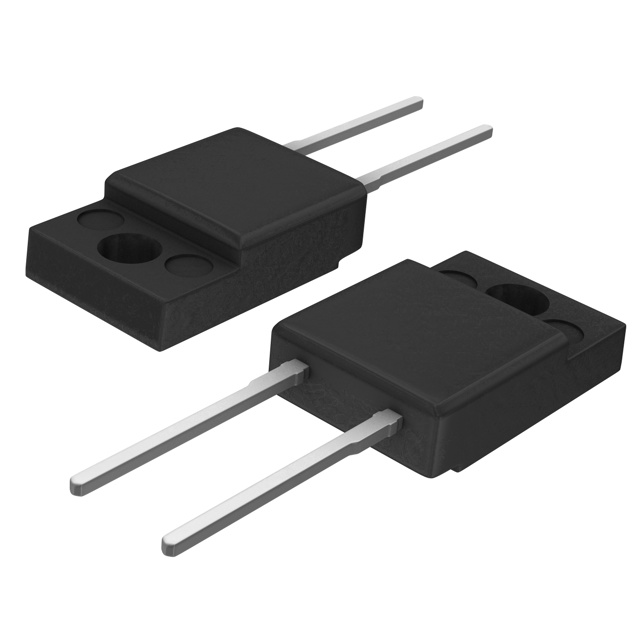

BYW29EX-200,127
