Product CatalogPart Number
BZD27C11P
Manufacturer
Taiwan Semiconductor CorporationDescription
DIODE ZENER 11V 1W SUB SMA
Datasheet
DatasheetPackage
SOD-123
In Stock
16,656 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BZD27C11P
BZD27C11P

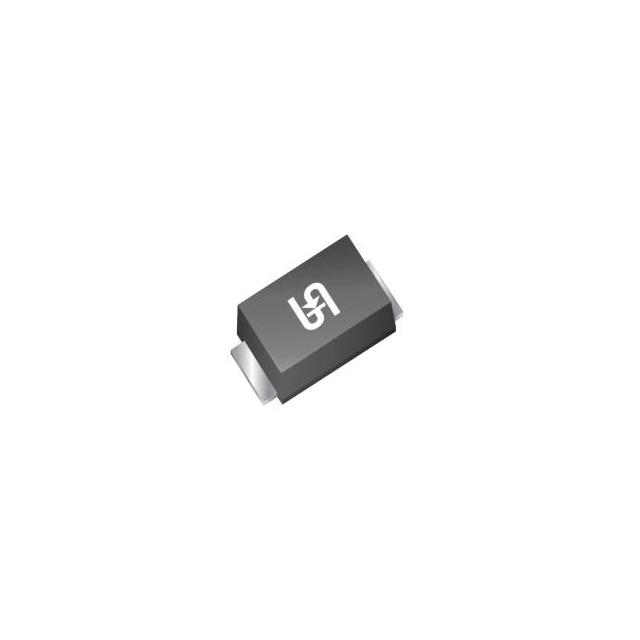

lmages are for reference only.Payment Methods
Delivery Services
Zener Diode 11 V 1 W ±5.45% Surface Mount Sub SMA
Quick Inquiry
BZD27C11P
Specifications
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 11 V |
| Tolerance | ±5.45% |
| Power - Max | 1 W |
| Impedance (Max) (Zzt) | 7 Ohms |
| Current - Reverse Leakage @ Vr | 4 µA @ 8.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | Sub SMA |
| Base Product Number | BZD27 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | BZD27C110P | BZD27C110P-E3-08 | BZD27C110P-E3-18 | BZD27C110P-HE3-08 |
| Manufacturer | Taiwan Semiconductor Corporation | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 110V 1W SUB SMA | DIODE ZENER 110V 800MW DO219AB | DIODE ZENER 110V 800MW DO219AB | DIODE ZENER 110V 800MW DO219AB |
| Series | - | BZD27C | BZD27C | BZD27C |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
