BZV55B51 L0G
lmages are for reference only.BZV55B51 L0G
DIODE ZENER 51V 500MW MINI MELF
DatasheetDO-213AC, MINI-MELF, SOD-80
59,668 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 51 V 500 mW ±2% Surface Mount Mini MELF
BZV55B51 L0G
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 51 V |
| Tolerance | ±2% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 125 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 38 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | Mini MELF |
| Base Product Number | BZV55B |
| Product Attribute |  |
 |
 |
 |

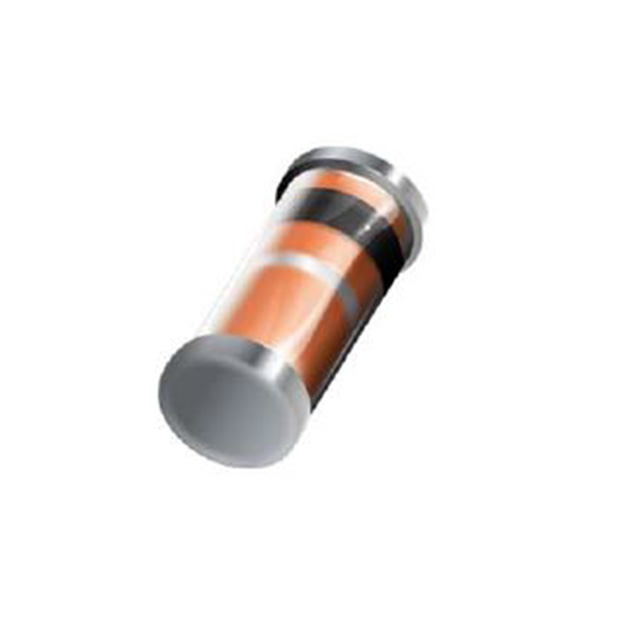

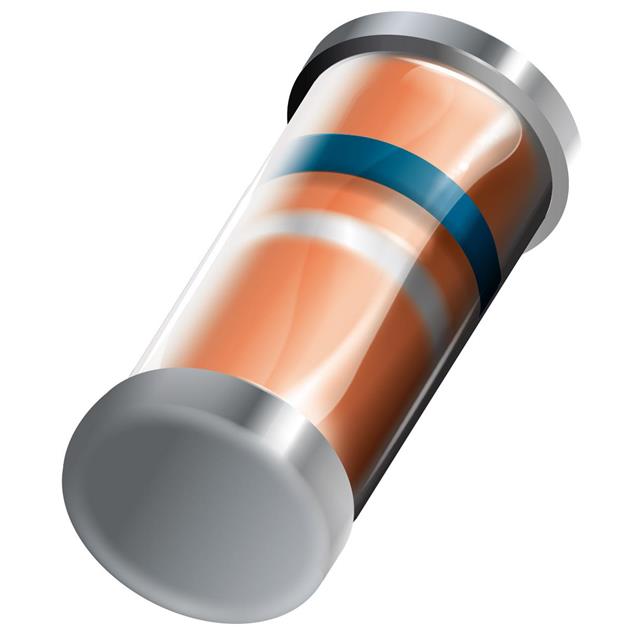

| Part Number | BZV55B10 | BZV55B10 L0G | BZV55B10 L1G | BZV55B11 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 10V 500MW MINI MELF | DIODE ZENER 10V 500MW MINI MELF | DIODE ZENER 10V 500MW MINI MELF | DIODE ZENER 11V 500MW MINI MELF |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
