BZV55C56
lmages are for reference only.BZV55C56
DIODE ZENER 56V 500MW MINI MELF
DatasheetDO-213AC, MINI-MELF, SOD-80
60,029 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 56 V 500 mW ±5% Surface Mount Mini MELF
BZV55C56
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 56 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 135 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 42 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | Mini MELF |
| Base Product Number | BZV55C |
| Product Attribute |  |
|
 |
 |

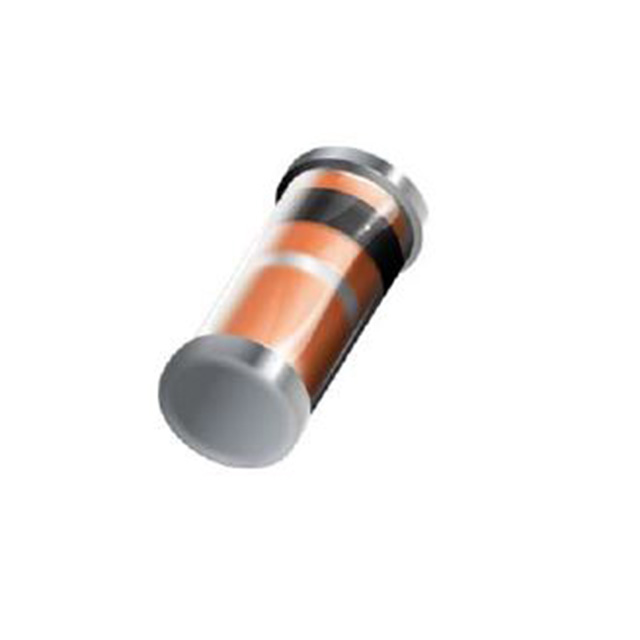

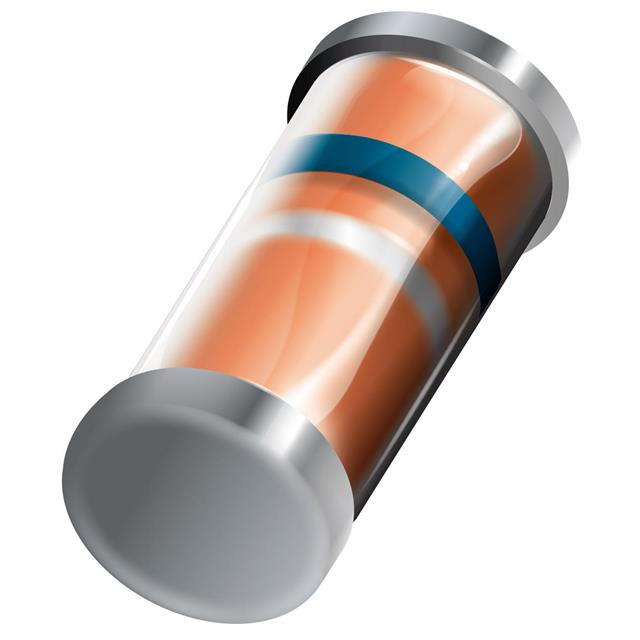

| Part Number | BZV55C51 | BZV55C51 | BZV55C51 L0G | BZV55C51 L1G |
| Manufacturer | Microchip Technology | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 51V DO213AA | DIODE ZENER 51V 500MW MINI MELF | DIODE ZENER 51V 500MW MINI MELF | DIODE ZENER 51V 500MW MINI MELF |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
