BZX584C3V3_R1_00001
lmages are for reference only.BZX584C3V3_R1_00001
DIODE ZENER 3.3V 200MW SOD523
DatasheetSC-79, SOD-523
97,911 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 3.3 V 200 mW ±5% Surface Mount SOD-523
BZX584C3V3_R1_00001
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 3.3 V |
| Tolerance | ±5% |
| Power - Max | 200 mW |
| Impedance (Max) (Zzt) | 95 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Base Product Number | BZX584 |
| Product Attribute |  |  |  |  |

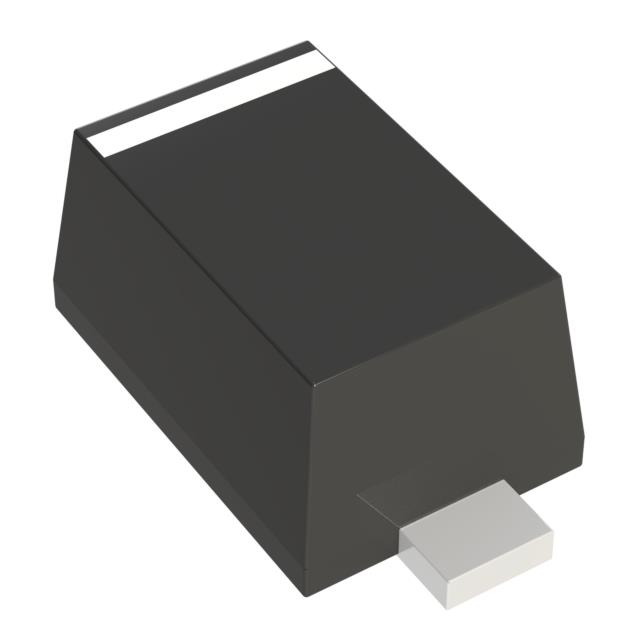

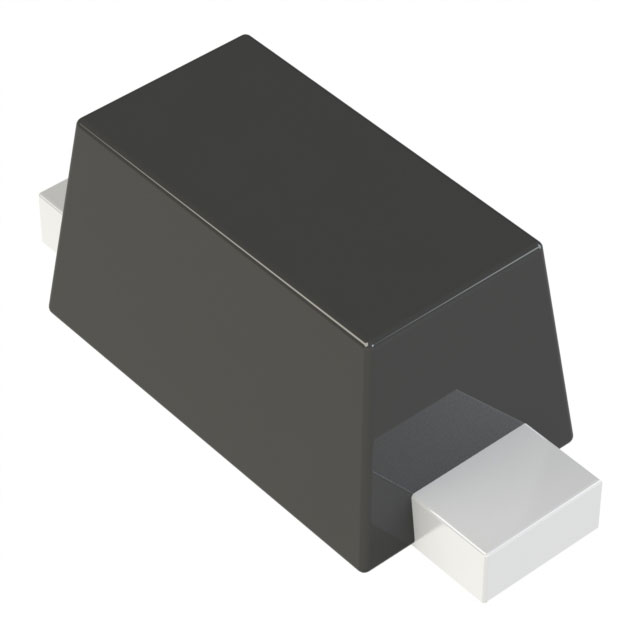

| Part Number | BZX584C3V0-G3-08 | BZX584C3V0-HG3-08 | BZX584C3V0-TP | BZX584C3V0-V-G-08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Micro Commercial Co | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE ZENER 3V 200MW SOD523 | DIODE ZENER 3V 200MW SOD523 | DIODE ZENER 3V 150MW SOD523 | DIODE ZENER 3V 200MW SOD523 |
| Series | BZX584C | BZX584C | - | BZX584C-V-G |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
