Product CatalogPart Number
C0603C0G500-5R6ANR
Manufacturer
VenkelDescription
Chip Capacitor,0603,C0G,50V,5.6p
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
16,459 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

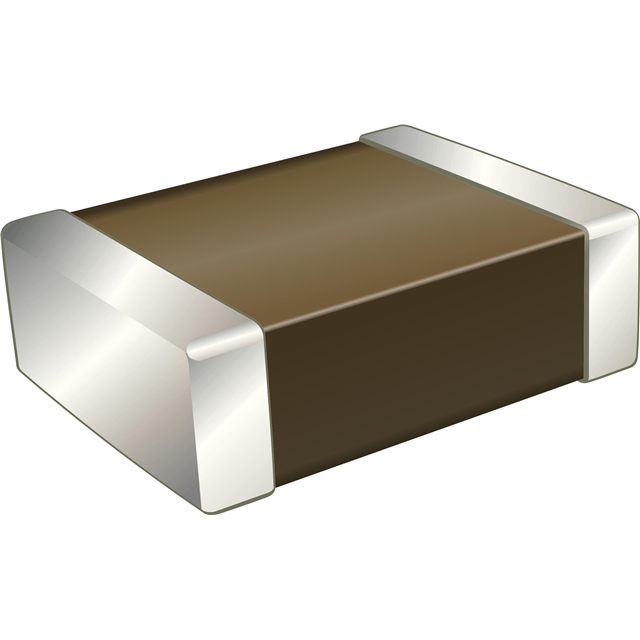

C0603C0G500-5R6ANR
C0603C0G500-5R6ANR
lmages are for reference only.Payment Methods
Delivery Services
5.6 pF ±0.05pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Quick Inquiry
C0603C0G500-5R6ANR
Specifications
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Venkel |
| Series | C |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Capacitance | 5.6 pF |
| Tolerance | ±0.05pF |
| Voltage - Rated | 50V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.84mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | C0603C0G500-5R6BNP | C0603C0G500-5R6BNR | C0603C0G500-5R6CNE | C0603C0G500-5R6CNE-CT |
| Manufacturer | Venkel | Venkel | Venkel | Venkel |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 5.6PF 50V C0G/NP0 0603 | Chip Capacitor,0603,C0G,50V,5.6p | CAP CER 5.6PF 50V C0G/NP0 0603 | CAP CER 5.6PF 50V C0G/NP0 0603 |
| Series | Venkel | Venkel | ||
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
