C17AH330J-7ZN-X0T
lmages are for reference only.C17AH330J-7ZN-X0T
HIGH-Q MLCC (AH): 1111, 33 PF (5
Datasheet1111 (2828 Metric)
52,324 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 pF ±5% 1000V (1kV) Ceramic Capacitor P90 1111 (2828 Metric)
C17AH330J-7ZN-X0T
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Knowles Dielectric Labs |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Knowles Dielectric Labs |
| Series | AH |
| Capacitance | 33 pF |
| Tolerance | ±5% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | P90 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.102" (2.60mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |

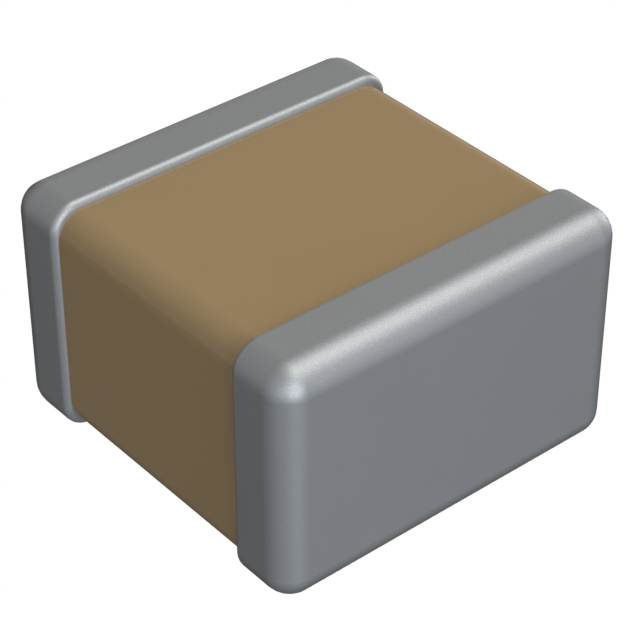

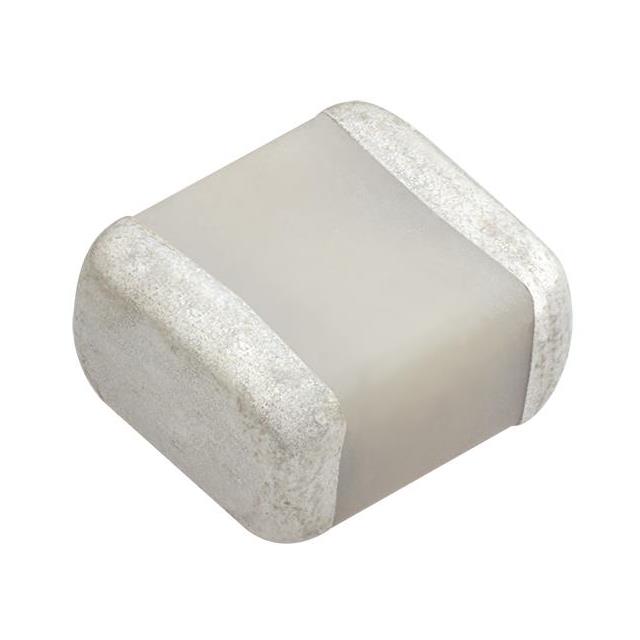

| Part Number | C17AH330J-7UN-X1T | C17AH330J-7UN-X1T | C17AH330F-7ZN-X0T | C17AH330K-7ZN-X0T |
| Manufacturer | Knowles Dielectric Labs | Knowles Dielectric Labs | Knowles Dielectric Labs | Knowles Dielectric Labs |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 1111 | CAP CER 1111 | HIGH-Q MLCC (AH): 1111, 33 PF (1 | HIGH-Q MLCC (AH): 1111, 33 PF (1 |
| Series | Knowles Dielectric Labs | Knowles Dielectric Labs | Knowles Dielectric Labs | Knowles Dielectric Labs |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
