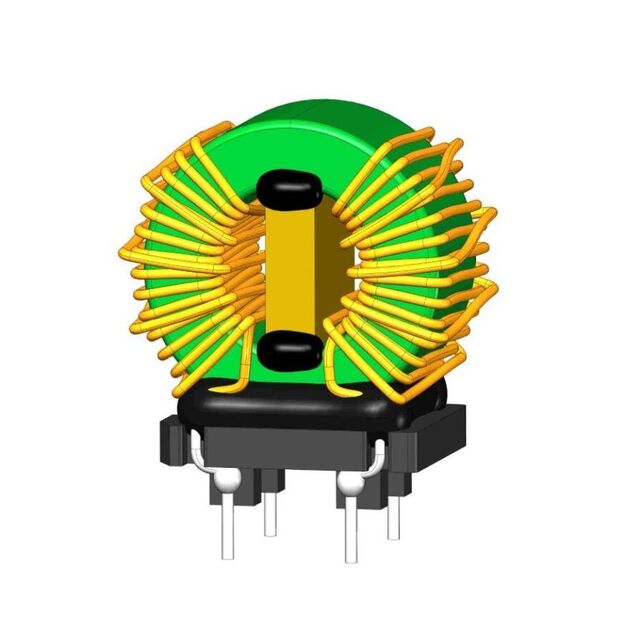

C201540A-203NHF
lmages are for reference only.C201540A-203NHF
CMC 20.0MH 30% 270.0M 1.5A MAX.
DatasheetVertical, 4 PC Pin
41,835 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 270mOhm
C201540A-203NHF
| Category | Filters - Common Mode Chokes - |
| Manufacturer | ITG Electronics, Inc. |
| Series | C201540A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 20 mH @ 10 kHz |
| Current Rating (Max) | 1.5A |
| DC Resistance (DCR) (Max) | 270mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.906" L x 0.543" W (23.00mm x 13.80mm) |
| Height (Max) | 1.004" (25.50mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | C201540A-102NHF | C201540A-103NHF | C201540A-222NHF | C201540A-332NHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CMC 1.0MH 30% 13.0M 6.0A MAX. | CMC 10.0MH 30% 125.0M 2.0A MAX. | CMC 2.2MH 30% 30.0M 4.0A MAX. | CMC 3.3MH 30% 53.0M 2.8A MAX. |
| Series | C201540A | C201540A | C201540A | C201540A |
| Packaging | Bulk | Bulk | Bulk | Bulk |
