C20200-13

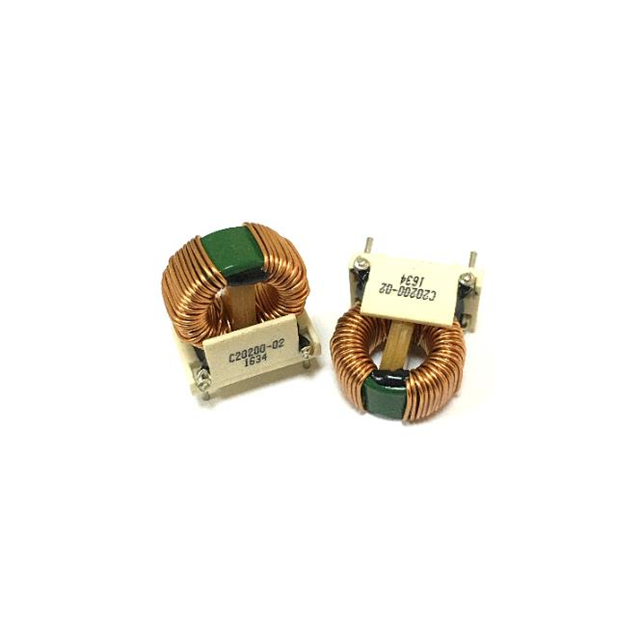

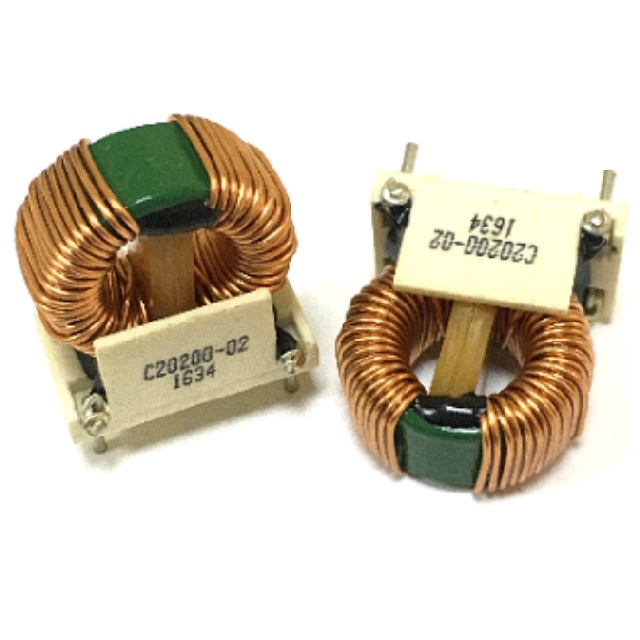

lmages are for reference only.C20200-13
5,000uH, 22mOhm, 8.9Amp Max.
DatasheetRadial, Vertical - 4 Leads
71,043 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 8.9A DCR 22mOhm
C20200-13
| Category | Filters - Common Mode Chokes - |
| Manufacturer | ITG Electronics, Inc. |
| Series | C20200 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 5 mH @ 1 kHz |
| Current Rating (Max) | 8.9A |
| DC Resistance (DCR) (Max) | 22mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.450" L x 0.811" W (36.83mm x 20.60mm) |
| Height (Max) | 1.500" (38.10mm) |
| Package / Case | Radial, Vertical - 4 Leads |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | C20200-10 | C20200-11 | C20200-12 | C20200-14 |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 20,000uH, 210mOhm, 1Amp Max. | 12,000uH, 110mOhm, 4Amp Max. | 8,000uH, 55mOhm, 5.6Amp Max. | 2,500uH, 11mOhm, 12.5Amp Max. |
| Series | C20200 | C20200 | C20200 | C20200 |
| Packaging | Tray | Tray | Tray | Tray |
