Product CatalogPart Number
C3D10170H
Manufacturer
Wolfspeed, Inc.Description
DIODE SIL CARB 1.7KV 14.4A TO247
Datasheet
DatasheetPackage
TO-247-2
In Stock
98,266 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
C3D10170H
C3D10170H

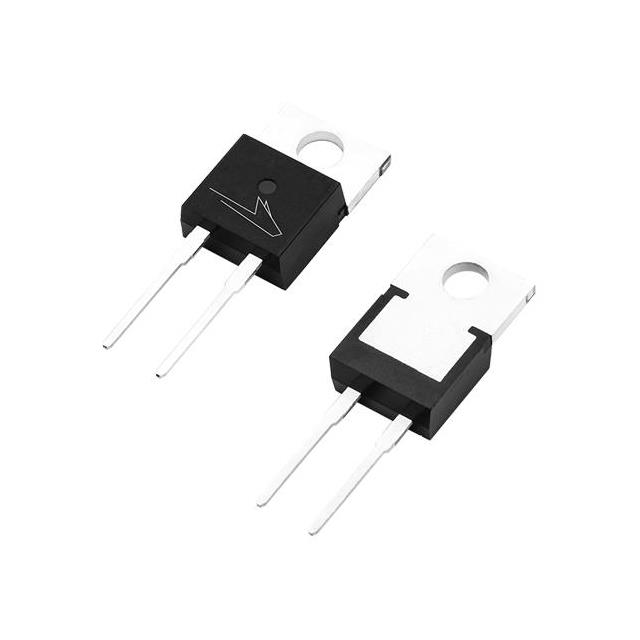

lmages are for reference only.Payment Methods
Delivery Services
Diode 1700 V 14.4A Through Hole TO-247-2
Quick Inquiry
C3D10170H
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Wolfspeed, Inc. |
| Series | Z-Rec® |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1700 V |
| Current - Average Rectified (Io) | 14.4A |
| Voltage - Forward (Vf) (Max) @ If | 2 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 60 µA @ 1700 V |
| Capacitance @ Vr, F | 827pF @ 0V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | C3D10170 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | C3D02060A | C3D02060E | C3D02060E-TR | C3D02060F |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SIL CARB 600V 8A TO220-2 | DIODE SIL CARB 600V 8A TO252-2 | DIODE SIL CARB 600V 8A TO252-2 | DIODE SIL CARB 600V 6A TO220-F2 |
| Series | Z-Rec® | Z-Rec® | Z-Rec® | Z-Rec® |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
