C3M0120090J
lmages are for reference only.C3M0120090J

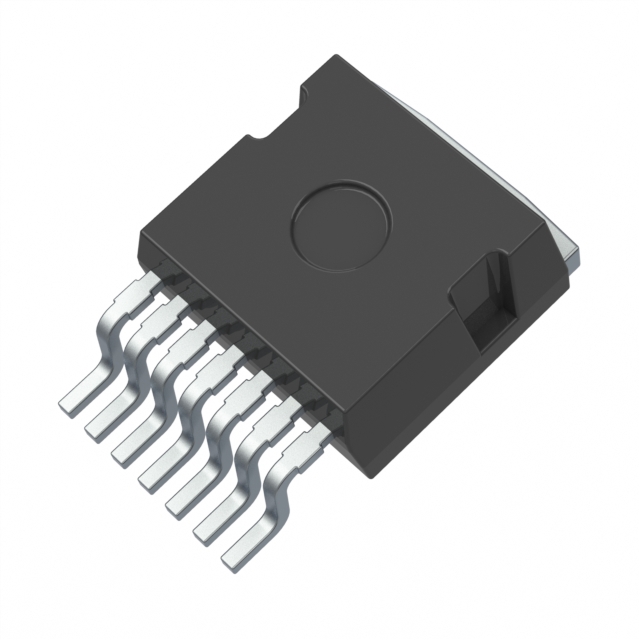

SICFET N-CH 900V 22A D2PAK-7
DatasheetTO-263-8, D2PAK (7 Leads + Tab), TO-263CA
22,242 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 900 V 22A (Tc) 83W (Tc) Surface Mount TO-263-7
C3M0120090J
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Wolfspeed, Inc. |
| Series | C3M™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 155mOhm @ 15A, 15V |
| Vgs(th) (Max) @ Id | 3.5V @ 3mA |
| Vgs (Max) | +18V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 350 pF @ 600 V |
| FET Feature | - |
| Power Dissipation (Max) | 83W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | C3M0120090 |
| Gate Charge (Qg) (Max) @ Vgs | 17.3 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | C3M0120090D | C3M0120090J-TR | C3M0120065D | C3M0120065J |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SICFET N-CH 900V 23A TO247-3 | SICFET N-CH 900V 22A D2PAK-7 | 650V 120M SIC MOSFET | 650V 120M SIC MOSFET |
| Series | C3M™ | C3M™ | C3M™ | C3M™ |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
