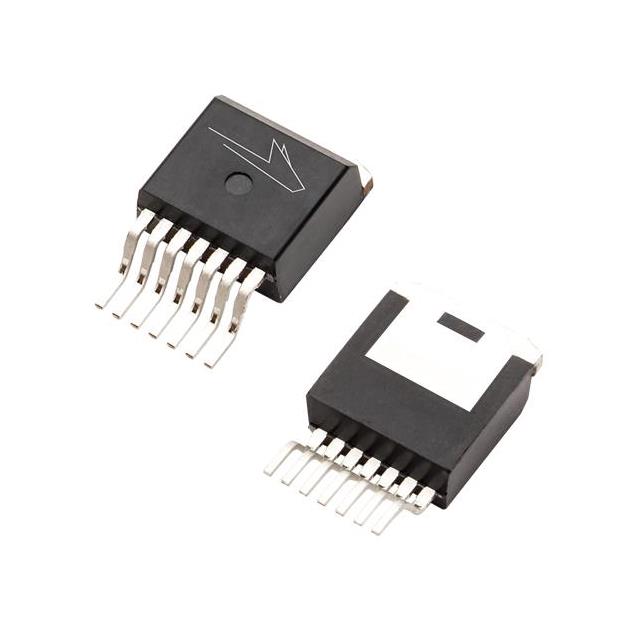

C3M0350120J
lmages are for reference only.C3M0350120J
SICFET N-CH 1200V 7.2A TO263-7
DatasheetTO-263-8, D2PAK (7 Leads + Tab), TO-263CA
41,571 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 1200 V 7.2A (Tc) 40.8W (Tc) Surface Mount TO-263-7
C3M0350120J
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Wolfspeed, Inc. |
| Series | C3M™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 7.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 455mOhm @ 3.6A, 15V |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Vgs (Max) | +15V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 345 pF @ 1000 V |
| FET Feature | - |
| Power Dissipation (Max) | 40.8W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | C3M0350120 |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

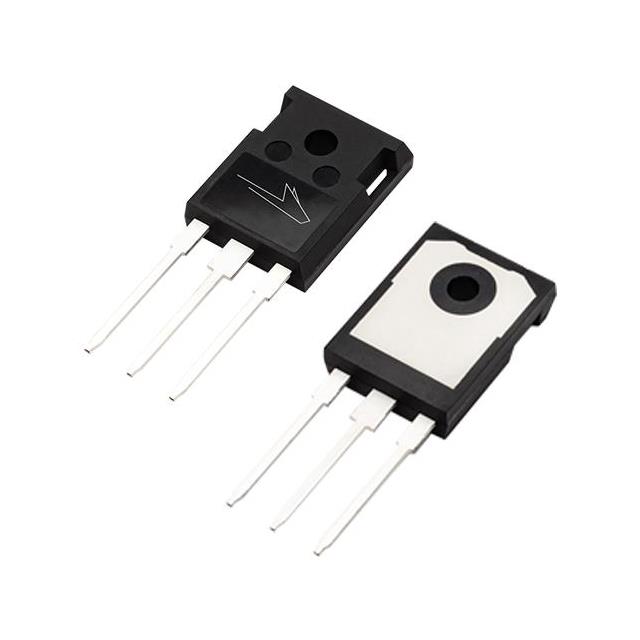

| Part Number | C3M0350120D | C3M0350120J-TR | CPMF-1200-S160B | C3M0015065K |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SICFET N-CH 1200V 7.6A TO247-3 | SIC, MOSFET, 350M,1200V, TO-263- | SICFET N-CH 1200V 28A DIE | SICFET N-CH 650V 120A TO247-4L |
| Series | C3M™ | C3M™ | Z-FET™ | C3M™ |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tube |
