Product CatalogPart Number
C503B-BCS-CV0Z0462
Manufacturer
Cree LEDDescription
LED BLUE CLEAR 5MM ROUND T/H
Datasheet
DatasheetPackage
Radial
In Stock
92,873 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
C503B-BCS-CV0Z0462
C503B-BCS-CV0Z0462

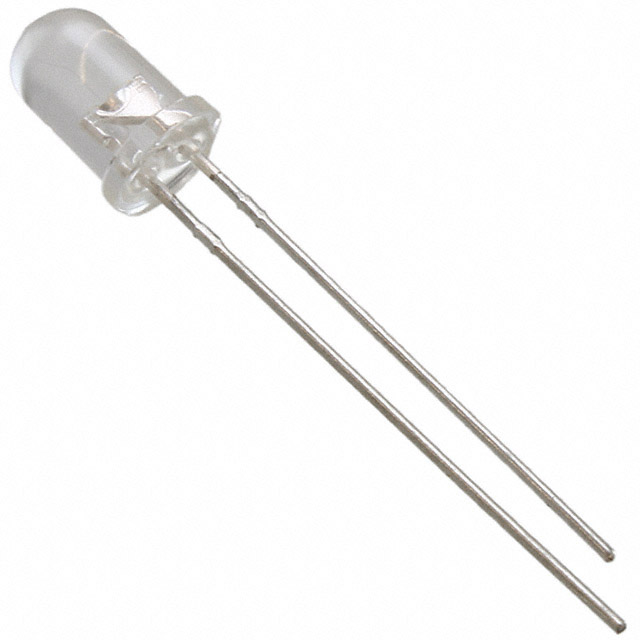

lmages are for reference only.Payment Methods
Delivery Services
Blue 470nm LED Indication - Discrete 3.2V Radial
Quick Inquiry
C503B-BCS-CV0Z0462
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Cree LED |
| Series | - |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Color | Blue |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 7065mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 470nm |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | 5mm Round |
| Size / Dimension | - |
| Height (Max) | 12.70mm |
| Base Product Number | C503B |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | C503B-BCS-CV0W0451 | C503B-BCS-CV0W0452 | C503B-BCS-CV0Z0461 | C503B-BCN-CU0W0451-030 |
| Manufacturer | Cree LED | Cree LED | Cree LED | Cree LED |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | LED BLUE CLEAR 5MM ROUND T/H | LED BLUE CLEAR 5MM ROUND T/H | LED BLUE CLEAR 5MM ROUND T/H | LED BLUE CLEAR 5MM ROUND T/H |
| Series | Cree LED | Cree LED | Cree LED | Cree LED |
| Packaging | Bulk | Tape & Box (TB) | Bulk | Bulk |
