C6D06065E
lmages are for reference only.C6D06065E
DIODE SIL CARB 650V 23A TO252-2
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
39,877 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 650 V 23A Surface Mount TO-252-2
C6D06065E
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Wolfspeed, Inc. |
| Series | Z-Rec® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 23A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 6 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 30 µA @ 650 V |
| Capacitance @ Vr, F | 394pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | C6D06065 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

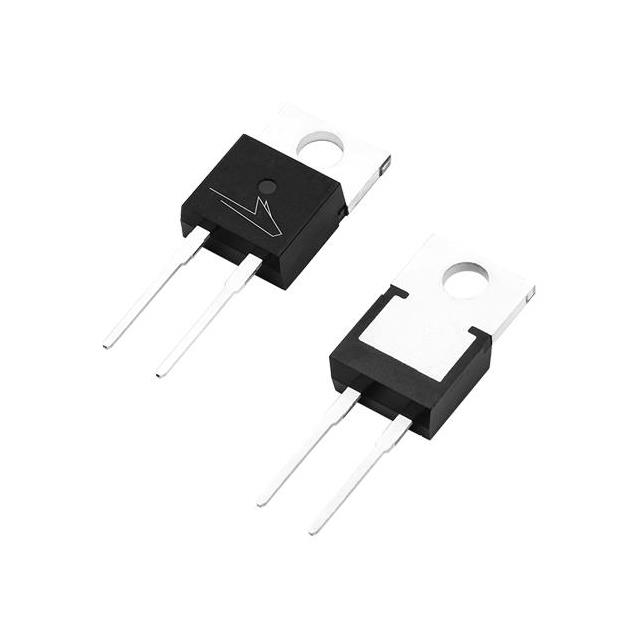

| Part Number | C6D06065A | C6D06065E-TR | C6D06065G | C6D06065G-TR |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE SIL CARB 650V 24A TO220-2 | SIC, SCHOTTKY DIODE, 6A, 650V, T | DIODE SIL CARB 650V 23A TO263-2 | DIODE SIL CARB 650V 23A TO263-2 |
| Series | Z-Rec® | Z-Rec® | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
