C6D10065G-TR
lmages are for reference only.C6D10065G-TR
DIODE SIL CARB 650V 36A TO263-2
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
35,261 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 650 V 36A Surface Mount TO-263-2
C6D10065G-TR
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Wolfspeed, Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 36A |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 20 µA @ 650 V |
| Capacitance @ Vr, F | 611pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | C6D10065 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

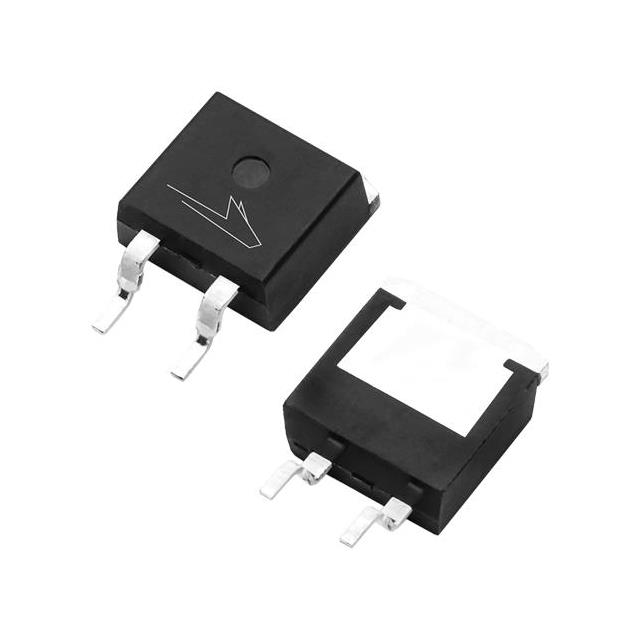

| Part Number | C6D10065G | C6D10065A | C6D10065E | C6D10065E-TR |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

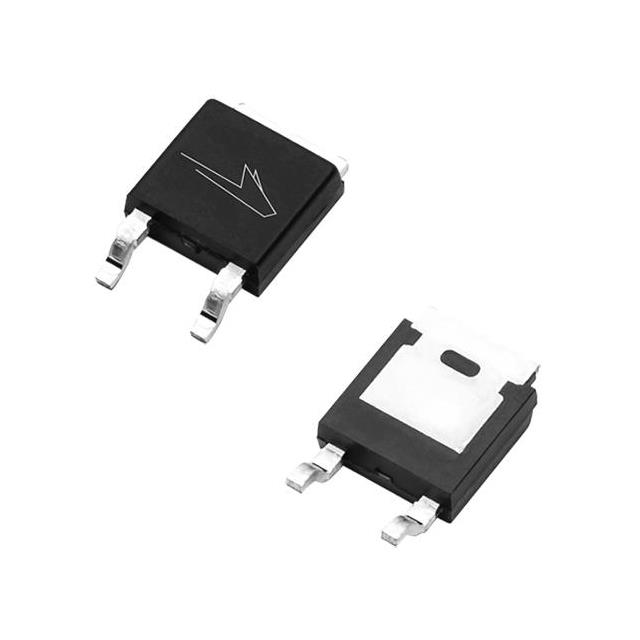

| Description | DIODE SIL CARB 650V 36A TO263-2 | DIODE SIL CARB 650V 37A TO220-2 | DIODE SIL CARB 650V 35A TO252-2 | SIC, SCHOTTKY DIODE, 10A, 650V, |
| Series | - | Z-Rec® | Z-Rec® | Z-Rec® |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
