Product CatalogPart Number
CAB425M12XM3
Manufacturer
Wolfspeed, Inc.Description
MOSFET 2N-CH 1200V 450A
Datasheet
DatasheetPackage
Module
In Stock
25,002 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CAB425M12XM3
CAB425M12XM3
lmages are for reference only.Payment Methods
Delivery Services
Mosfet Array 1200V (1.2kV) 450A Chassis Mount
Quick Inquiry
CAB425M12XM3
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Wolfspeed, Inc. |
| Series | CAB425M12XM3 |
| Packaging | Bulk |
| RoHS Status | |
| Technology | Silicon Carbide (SiC) |
| Configuration | 2 N-Channel (Half Bridge) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 450A |
| Rds On (Max) @ Id, Vgs | 4.2mOhm @ 425A, 15V |
| Vgs(th) (Max) @ Id | 3.6V @ 115mA |
| Gate Charge (Qg) (Max) @ Vgs | 1135nC @ 15V |
| Input Capacitance (Ciss) (Max) @ Vds | 30.7nF @ 800V |
| Power - Max | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | CAB425M12 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

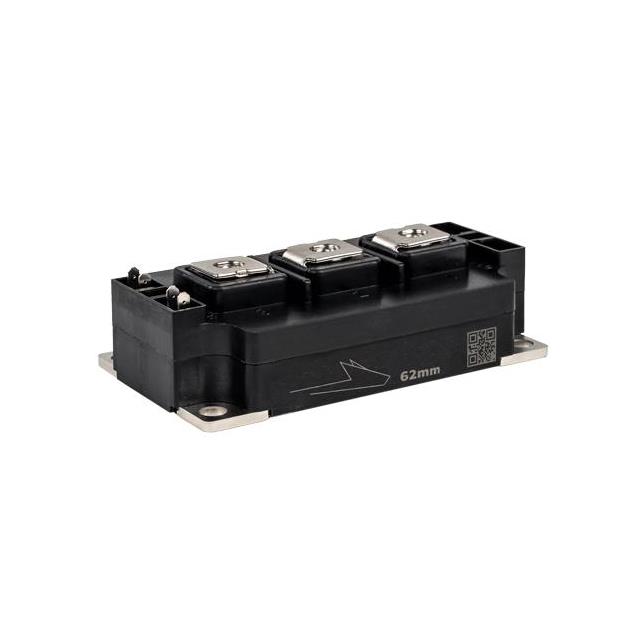

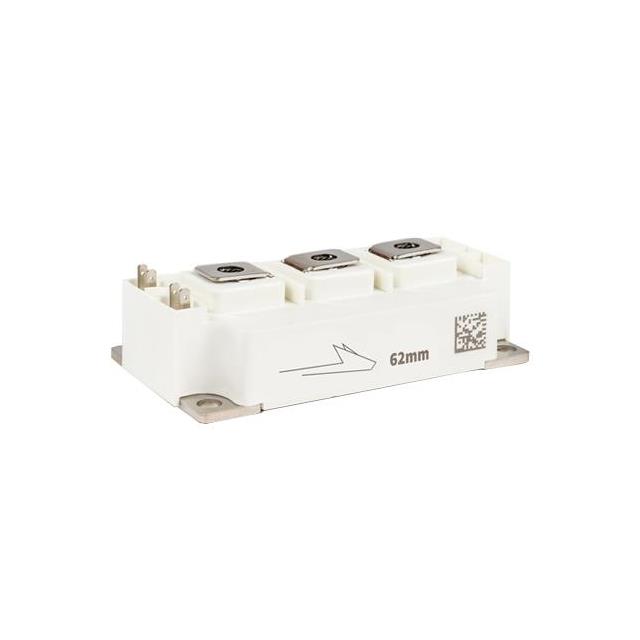

| Part Number | CAB008M12GM3 | CAB530M12BM3 | CAS300M17BM2 | CAR600M12HN6 |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS Compliant | |
| Description | SIC 2N-CH 1200V | MOSFET 2N-CH 1200V 530A MODULE | MOSFET 2N-CH 1700V 325A MODULE | MOSFET 2N-CH 1200V 908A MODULE |
| Series | WolfPACK™ | - | Z-Rec® | - |
| Packaging | Tray | Tray | Box | Bulk |
