CAT16-2492F4LF

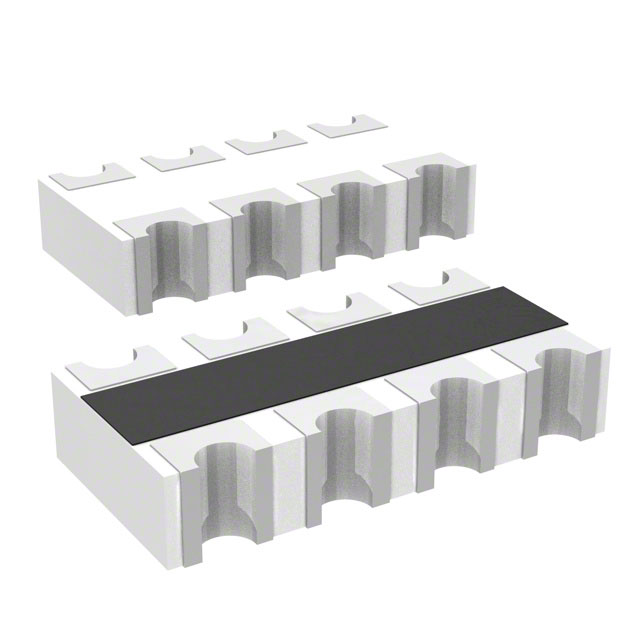

lmages are for reference only.CAT16-2492F4LF
RES ARRAY 4 RES 24.9K OHM 1206
Datasheet1206 (3216 Metric), Concave, Long Side Terminals
55,233 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24.9k Ohm ±1% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Concave, Long Side Terminals
CAT16-2492F4LF
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | Bourns Inc. |
| Series | CAT16 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Isolated |
| Resistance (Ohms) | 24.9k |
| Tolerance | ±1% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave, Long Side Terminals |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | CAT16 |
| Product Attribute |  |
 |
 |
 |
| Part Number | CAT16-2400F4LF | CAT16-2401F4LF | CAT16-2402F4LF | CAT16-240J4GLF |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES ARRAY 4 RES 240 OHM 1206 | RES ARRAY 4 RES 2.4K OHM 1206 | RES ARRAY 4 RES 24K OHM 1206 | RES ARRAY 4 RES 24 OHM 1206 |
| Series | CAT16 | CAT16 | CAT16 | CAT16 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
