Product CatalogPart Number
CB10LH101M
Manufacturer
TE Connectivity Passive ProductDescription
TRIMMER 100OHM 0.15W PC PIN SIDE
Datasheet
DatasheetPackage
-
In Stock
43,590 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CB10LH101M
CB10LH101M
lmages are for reference only.Payment Methods
Delivery Services
100 Ohms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
Quick Inquiry
CB10LH101M
Specifications
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | TE Connectivity Passive Product |
| Series | CB10, Citec |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Resistance | 100 Ohms |
| Power (Watts) | 0.15W |
| Tolerance | ±20% |
| Temperature Coefficient | ±500ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Side Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Rectangular - 0.425" x 0.386" Face (10.80mm x 9.80mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CB10LH103M | CB10LH104M | CB10LH105M | CB10LH106N |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | TRIMMER 10KOHM 0.15W PC PIN SIDE | TRIMMER 100K OHM 0.15W PC PIN | TRIMMER 1M OHM 0.15W PC PIN SIDE | TRIMMER 10MOHM 0.15W PC PIN SIDE |
| Series | CB10, Citec | CB10, Citec | CB10, Citec | CB10, Citec |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
CB10LH103M
TE Connectivity Passive Product
CB10LH104M
TE Connectivity Passive Product
CB10LH105M
TE Connectivity Passive Product
CB10LH106N
TE Connectivity Passive Product
CB10LH221M
TE Connectivity Passive Product
CB10LH222M
TE Connectivity Passive Product
CB10LH223M
TE Connectivity Passive Product
CB10LH224M
TE Connectivity Passive Product
CB10LH471M
TE Connectivity Passive Product
CB10LH473M
TE Connectivity Passive Product

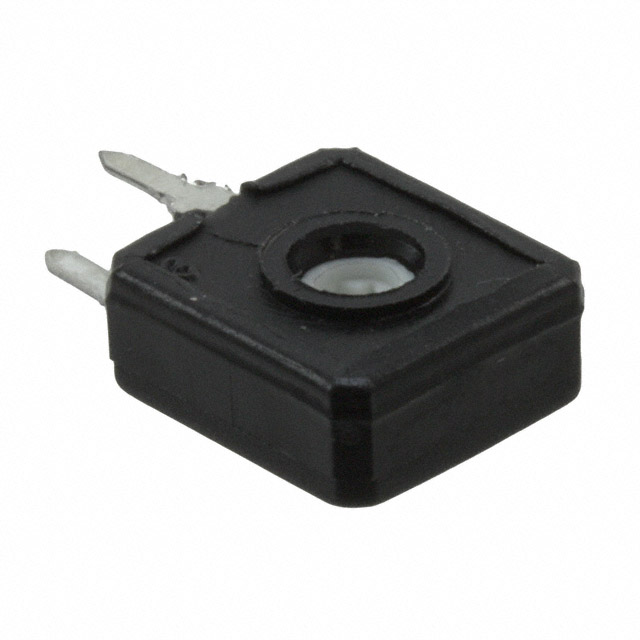

CB10LH474M
TE Connectivity Passive Product
CB10LH475N
TE Connectivity Passive Product
CB10LV101M
TE Connectivity Passive Product
CB10LV102M
TE Connectivity Passive Product
CB10LV103K
TE Connectivity Passive Product
CB10LV103M
TE Connectivity Passive Product
CB10LV104M
TE Connectivity Passive Product

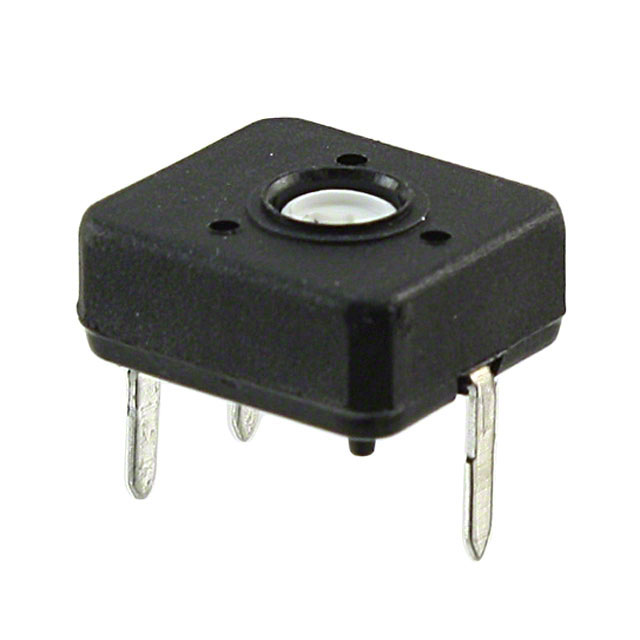

CB10LV105M
