Product CatalogPart Number
CBC2518T100KV
Manufacturer
Taiyo YudenDescription
FIXED IND 10UH 375MA 468MOHM SMD
Datasheet
DatasheetPackage
1007 (2518 Metric)
In Stock
70,324 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CBC2518T100KV
CBC2518T100KV
lmages are for reference only.Payment Methods
Delivery Services
10 µH Unshielded Drum Core, Wirewound Inductor 375 mA 468mOhm Max 1007 (2518 Metric)
Quick Inquiry
CBC2518T100KV
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | CB, C Type |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 375 mA |
| Current - Saturation (Isat) | 480mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 468mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1007 (2518 Metric) |
| Supplier Device Package | 1007 (2518 Metric) |
| Size / Dimension | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CBC2518T100K | CBC2518T100M | CBC2518T100MV | CBC2518T101K |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 680MA 468MOHM SMD | FIXED IND 10UH 680MA 468MOHM SMD | FIXED IND 10UH 375MA 468MOHM SMD | FIXED IND 100UH 170MA 4.81OHM SM |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
CBC2518T100K
Taiyo Yuden
CBC2518T100M
Taiyo Yuden
CBC2518T100MV
Taiyo Yuden
CBC2518T101K
Taiyo Yuden
CBC2518T101KV
Taiyo Yuden
CBC2518T101M
Taiyo Yuden
CBC2518T101MV
Taiyo Yuden
CBC2518T150K
Taiyo Yuden
CBC2518T150KV
Taiyo Yuden
CBC2518T150M
Taiyo Yuden
CBC2518T150M
Taiyo Yuden
CBC2518T150MV
Taiyo Yuden
CBC2518T151K
Taiyo Yuden
CBC2518T151KV
Taiyo Yuden
CBC2518T151M
Taiyo Yuden
CBC2518T151MV
Taiyo Yuden

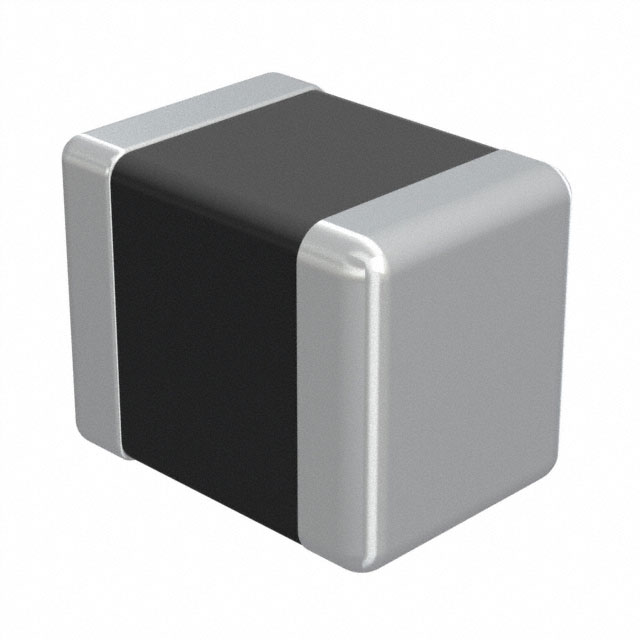

CBC2518T1R0M
