CBC3225T101MRV

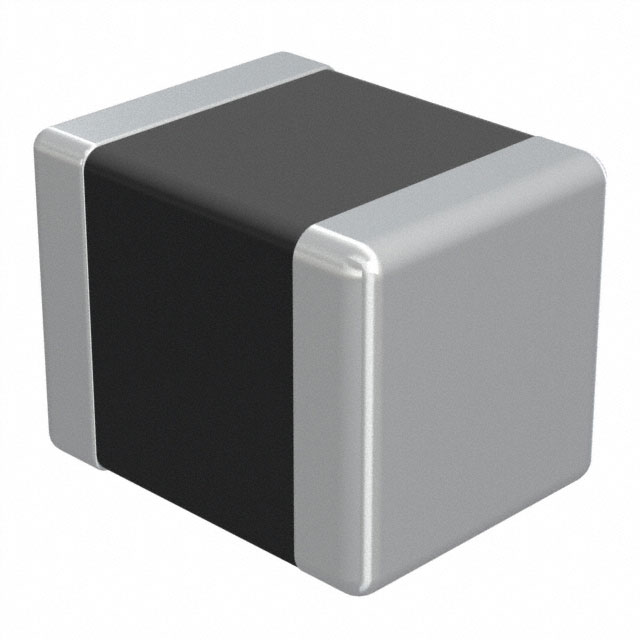

lmages are for reference only.CBC3225T101MRV
FIXED IND 100UH 220MA 1.82OHM SM
Datasheet1210 (3225 Metric)
28,326 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µH Unshielded Drum Core, Wirewound Inductor 220 mA 1.82Ohm Max 1210 (3225 Metric)
CBC3225T101MRV
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | CB, C Type |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 220 mA |
| Current - Saturation (Isat) | 270mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.82Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 6MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.106" (2.70mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CBC3225T101KR | CBC3225T101KRV | CBC3225T101MR | CBC3225T100KR |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100UH 340MA 1.82OHM SM | FIXED IND 100UH 220MA 1.82OHM SM | FIXED IND 100UH 340MA 1.82OHM SM | FIXED IND 10UH 900MA 172.9 MOHM |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
