Product CatalogPart Number
CC10-0505SR-E
Manufacturer
TDK-LambdaDescription
DC DC CONVERTER 5V 10W
Datasheet
DatasheetPackage
7-SMD Module
In Stock
61,717 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CC10-0505SR-E
CC10-0505SR-E
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 2A 4.5V - 9V Input
Quick Inquiry
CC10-0505SR-E
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | TDK-Lambda |
| Series | CC-E (10W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2A |
| Power (Watts) | 10 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 7-SMD Module |
| Size / Dimension | 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | CC10-0505 |
| Voltage - Isolation | 500 V |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | CC10-0505SF-E | CC10-0505SR-E | CC10-0503SF-E | CC10-0503SF-E |
| Manufacturer | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 5V 10W | DC DC CONVERTER 5V 10W | DC DC CONVERTER 3.3V 10W | DC DC CONVERTER 3.3V 10W |
| Series | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
CC10-0503SF-E
TDK-Lambda
CC10-0503SF-E
TDK-Lambda
CC10-0503SR-E
TDK-Lambda

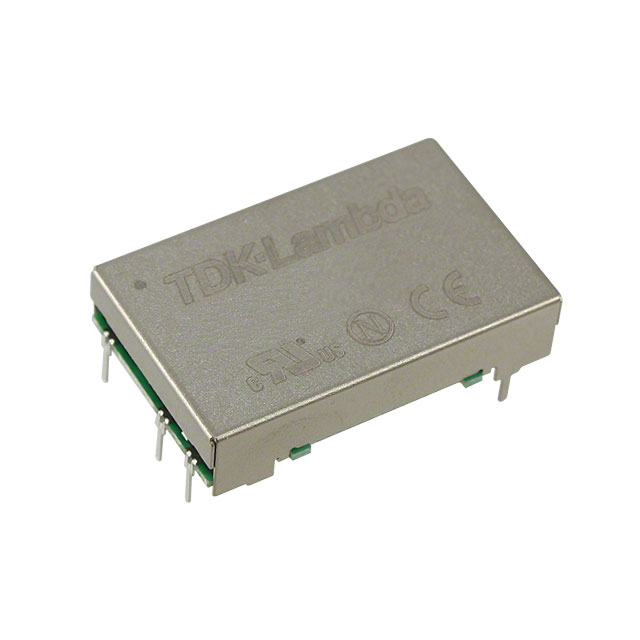

CC10-0505SF-E
TDK-Lambda
CC10-0505SR-E
TDK-Lambda
CC10-0512DF-E
TDK-Lambda
CC10-0512DR-E
TDK-Lambda
CC10-0512SF-E
TDK-Lambda
CC10-0512SR-E
TDK-Lambda
CC10-1203SF-E
TDK-Lambda
CC10-1203SR-E
TDK-Lambda
CC10-1205SF-E
TDK-Lambda

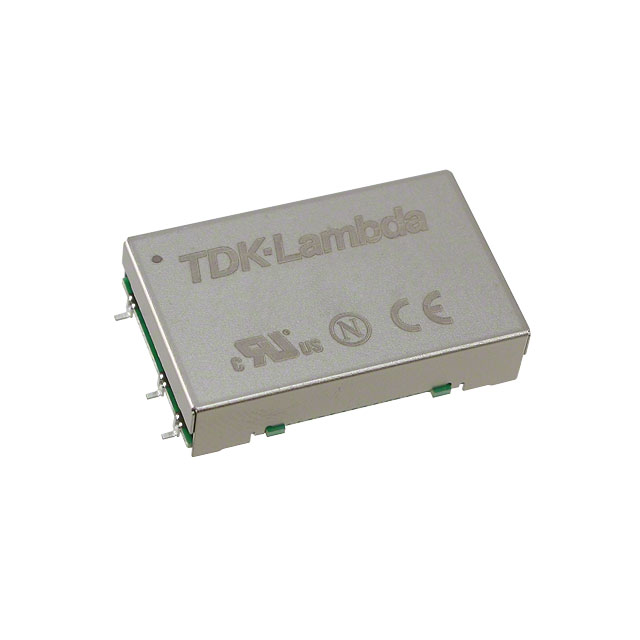

CC10-1205SR-E
