CC2824E105R-10
lmages are for reference only.CC2824E105R-10

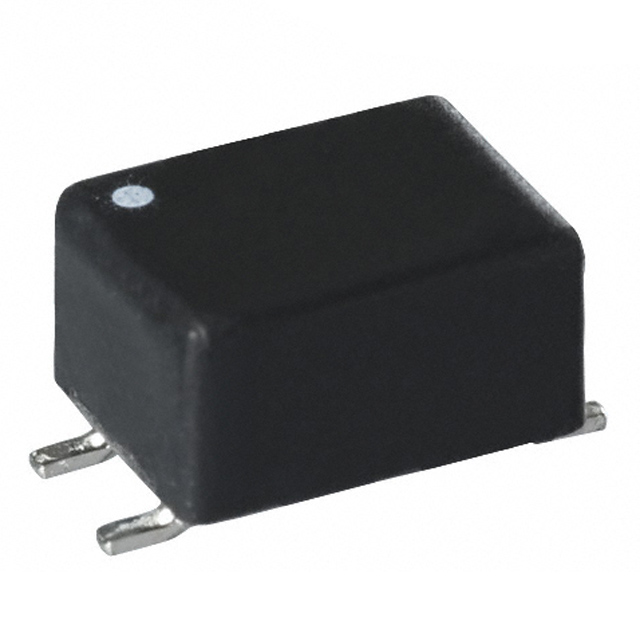

CMC 1MH 700MA 2LN 4.25KOHM SMD
DatasheetHorizontal, 4 Flat Lead
73,208 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 mH @ 100 kHz 2 Line Common Mode Choke Surface Mount 4.25 kOhms @ 7 MHz 700mA DCR 260mOhm
CC2824E105R-10
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | CC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 1 mH @ 100 kHz |
| Current Rating (Max) | 700mA |
| DC Resistance (DCR) (Max) | 260mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | 42V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.354" L x 0.217" W (9.00mm x 5.50mm) |
| Height (Max) | 0.193" (4.90mm) |
| Package / Case | Horizontal, 4 Flat Lead |
| Base Product Number | - |
| Impedance @ Frequency | 4.25 kOhms @ 7 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CC2824E105R-00 | CC2824E113R-00 | CC2824E113R-10 | CC2824B475R-00 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | |||
| Description | CMC 1MH 700MA 2LN 4.25KOHM SMD | CMC 11UH 800MA 2LN 800 OHM SMD | CMC 11UH 800MA 2LN 800 OHM SMD | CMC 4.7MH 400MA 2LN 12.3KOHM SMD |
| Series | CC | CC | CC | CC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
