CCG10-24-12DF
Manufacturer
TDK-LambdaDescription
DC DC CONVERTER +/-12V 10.08W
Datasheet
DatasheetPackage
6-DIP Module
In Stock
25,449 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

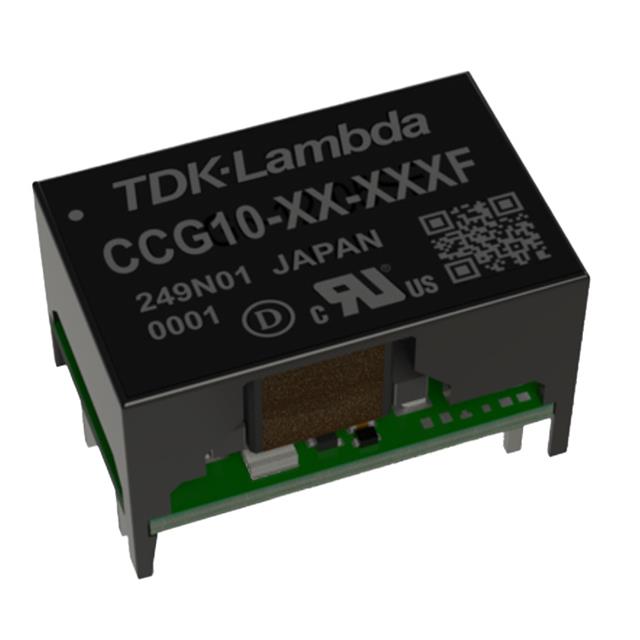

CCG10-24-12DF

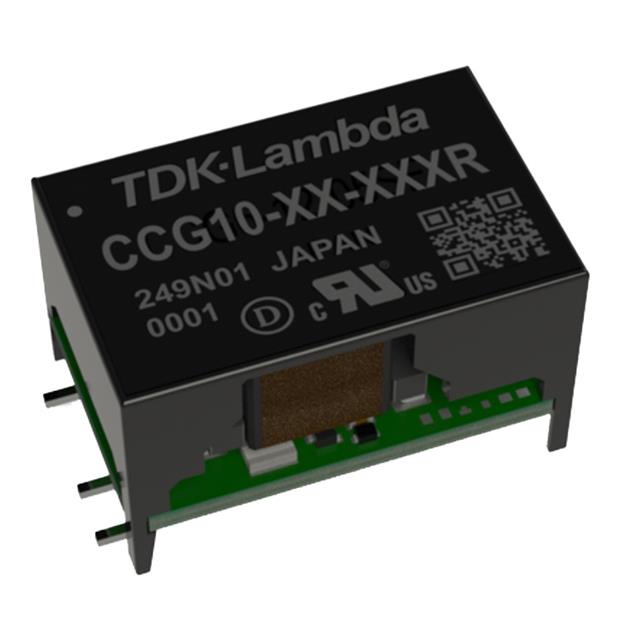

CCG10-24-12DF
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 420mA, 420mA 9V - 36V Input
Quick Inquiry
CCG10-24-12DF
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | TDK-Lambda |
| Series | CCG1R5-10 (10W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 420mA, 420mA |
| Power (Watts) | 10 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP |
| Operating Temperature | -40°C ~ 90°C (With Derating) |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 0.75" L x 0.49" W x 0.45" H (19.0mm x 12.4mm x 11.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | IEC, UL, CSA, EN, CE, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
