CD54AC86F

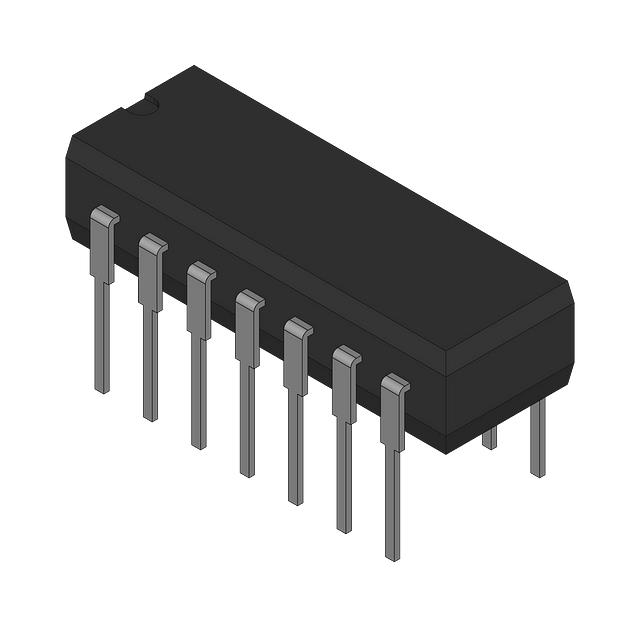

lmages are for reference only.CD54AC86F
IC GATE XOR 4CH 2-INP 14CERDIP
Datasheet14-DIP (0.300", 7.62mm)
11,085 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
XOR (Exclusive OR) IC 4 Channel 14-CERDIP
CD54AC86F
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Harris Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Base Product Number | 54AC86 |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.3V ~ 1.65V |
| Input Logic Level - High | 1.2V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 10.8ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-CERDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CD54AC86F3A | CD54AC32F3A | CD54ACT02F3A | CD54ACT04F3A |
| Manufacturer | Harris Corporation | Harris Corporation | Texas Instruments | Texas Instruments |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | IC GATE XOR 4CH 2-INP 14CERDIP | IC GATE OR 4CH 2-INP 14CDIP | IC GATE NOR 4CH 2-INP 14CDIP | IC HEX INVERTER |
| Series | - | - | 54ACT | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
