CDBHM220L-HF

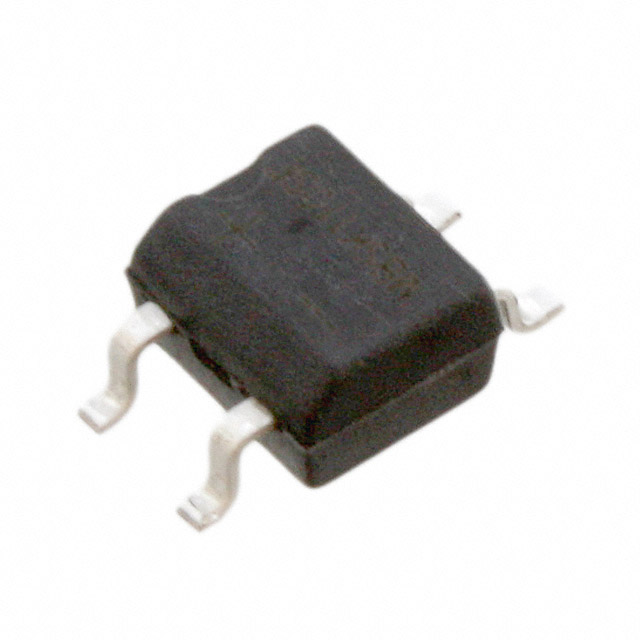

lmages are for reference only.CDBHM220L-HF
BRIDGE RECT 1PHASE 20V 2A MBS-2
DatasheetTO-269AA, 4-BESOP
44,754 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Schottky 20 V Surface Mount MBS-2
CDBHM220L-HF
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Schottky |
| Voltage - Peak Reverse (Max) | 20 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 20 V |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-269AA, 4-BESOP |
| Supplier Device Package | MBS-2 |
| Base Product Number | CDBHM220 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

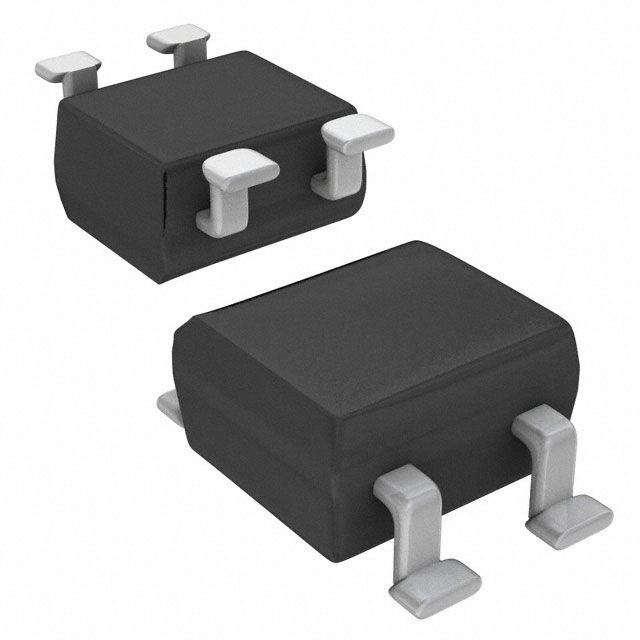

| Part Number | CDBHM220L-G | CDBHM2100L-G | CDBHM2100L-HF | CDBHM2150L-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 20V 2A MBS-2 | BRIDGE RECT 1PHASE 100V 2A MBS-2 | BRIDGE RECT 1PHASE 100V 2A MBS-2 | DIODE SCHOTTKY 150V 2A MBS |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
