Product CatalogPart Number
CDBMH120-HF
Manufacturer
Comchip TechnologyDescription
DIODE SCHOTTKY 20V 1A SOD123T
Datasheet
DatasheetPackage
SOD-123T
In Stock
68,027 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CDBMH120-HF
CDBMH120-HF
lmages are for reference only.Payment Methods
Delivery Services
Diode 20 V 1A Surface Mount SOD-123T
Quick Inquiry
CDBMH120-HF
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 20 V |
| Capacitance @ Vr, F | 120pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123T |
| Supplier Device Package | SOD-123T |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | CDBMH180-HF | CDBMH2100-HF | CDBMH240-HF | CDBMH250-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ||||
| Description | DIODE SCHOTTKY 80V 1A SOD123T | DIODE SCHOTTKY 100V 2A SOD123T | DIODE SCHOTTKY 40V 2A SOD123T | DIODE SCHOTTKY 50V 2A SOD123T |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
CDBMH180-HF
Comchip Technology
CDBMH2100-HF
Comchip Technology
CDBMH240-HF
Comchip Technology
CDBMH250-HF
Comchip Technology
CDBMH260-HF
Comchip Technology

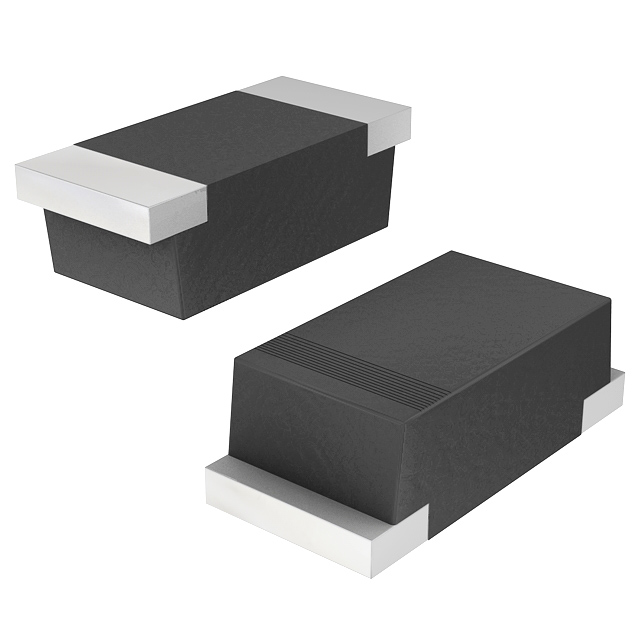

CDBMH3100-HF
Comchip Technology
CDBMH340-G
Comchip Technology
CDBMH340-HF
Comchip Technology

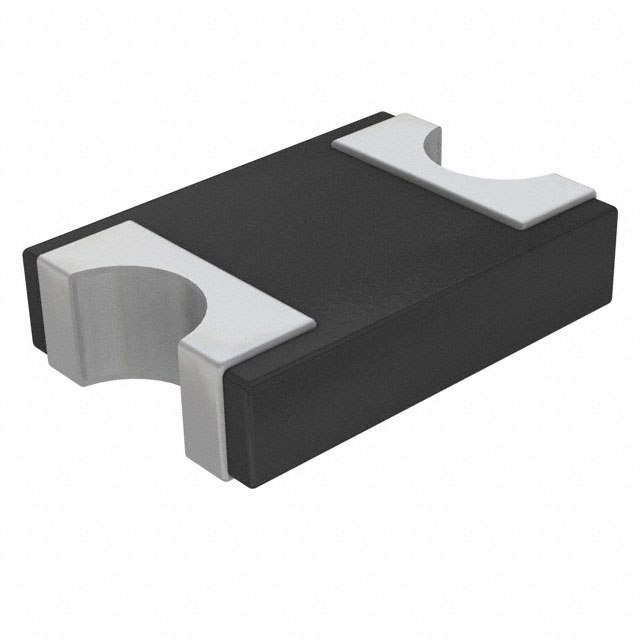

CDBMH360-HF
